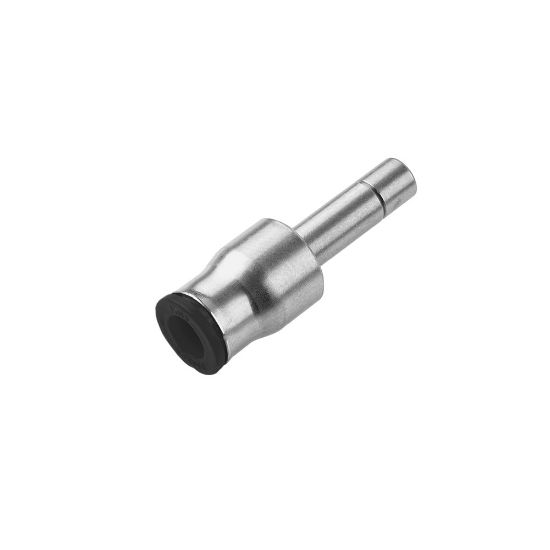

62PLPSP-4-5/32 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 62PLPSP-4-5/32

$10.27/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Size	1/4"
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 1 Size	5/32"	Connection 2 Type	Push-to-Connect
Product Style	Tube Expander	For Fluid Type	Air
Division	Fluid System Connectors Division	Gripping Ring Material	Stainless Steel
Maximum Operating Temperature	93.3 °C	Seal Material	Nitrile
Tube Material	Rigid Nylon	Technology	Fluid & Gas Handling
Minimum Operating Temperature	-17.7 °C	Application	Vacuum
Specifications Met	UL 94 V-0	Brand	Parker
Materials of Construction	PVDF (Button)	Body Material	Brass, Nickel-plated
Region of Origin	United States	Vacuum Pressure Rating	28 Inch-Hg
Maximum Operating Pressure	20.6 bar	Division	Fluid System Connectors Division
Industry	Industrial Manufacturing Equipment
