*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

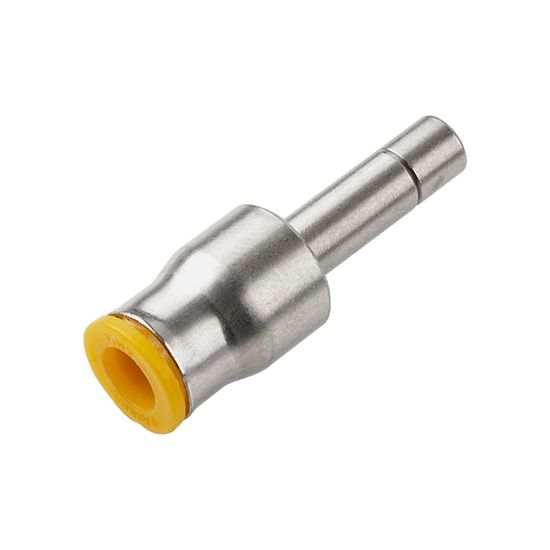

62PLPSP-6M-4M - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 62PLPSP-6M-4M

$7.49/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	6 mm
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Size	4 mm	Connection 2 Type	Push-to-Connect
Product Style	Tube Expander	Division	Fluid System Connectors Division
Industry	Material Handling	Division	Fluid System Connectors Division
For Fluid Type	Oil	Maximum Operating Temperature	93.3 °C
Seal Material	Nitrile	Gripping Ring Material	Stainless Steel
Technology	Pneumatics	Tube Material	Rigid Nylon
Hex Size	n/a	Specifications Met	UL 94 V-0
Brand	Parker	Minimum Operating Temperature	0 °F
Materials of Construction	PVDF (Button)	Application	Air Lines
Body Material	Brass, Nickel-plated	Vacuum Pressure Rating	28 Inch-Hg
Region of Origin	United States	Maximum Operating Pressure	300 psi
