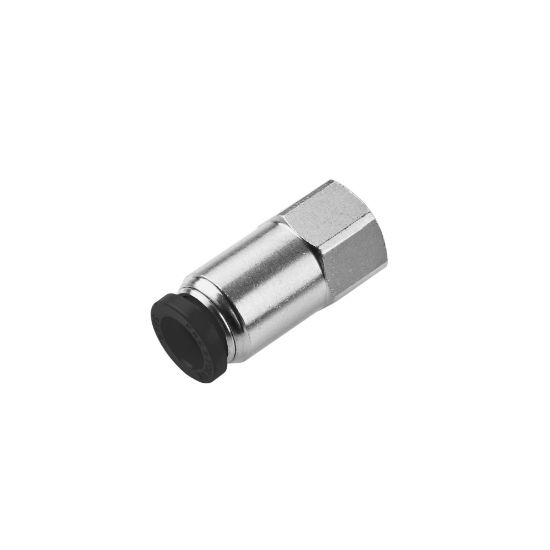

66PLP-2-4 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 31 days
Partner Available:	50 in stock

SKU 66PLP-2-4

$16.03/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/8"
Connection 2 Size	1/4"	Product Style	Connector
Connection 1 Type	Push-to-Connect	Configuration	Tube to Female Pipe
Connection 2 Type	Female NPTF	Division	Fluid System Connectors Division
Seal Material	Nitrile	Gripping Ring Material	Stainless Steel
For Fluid Type	Air	Maximum Operating Temperature	200 °F
Tube Material	Polyethylene	Technology	Fluid & Gas Handling
Minimum Operating Temperature	-17.7 °C	Hex Size	11/16 inch
Application	Automotive	Specifications Met	UL 94 V-0
Materials of Construction	PVDF (Button)	Brand	Parker
Maximum Operating Pressure	300 psi	Region of Origin	United States
Division	Fluid System Connectors Division	Body Material	Brass, Nickel-plated
Vacuum Pressure Rating	28 Inch-Hg	Industry	Semiconductor
