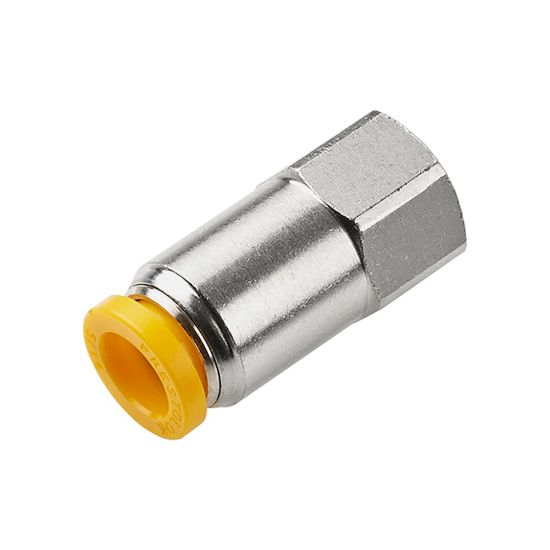

66PLP-6M-2G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 66PLP-6M-2G

$10.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	6 mm
Connection 2 Size	1/8"	Product Style	Connector
Connection 1 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 2 Type	Female BSPP	Seal Material	Nitrile
Gripping Ring Material	Stainless Steel	Maximum Operating Temperature	200 °F
Technology	Pneumatics	Tube Material	Rigid Nylon
Hex Size	9/16 inch	Minimum Operating Temperature	-17.7 °C
Brand	Parker	Specifications Met	UL 94 V-0
Application	Oil Lines	Materials of Construction	PVDF (Button)
Region of Origin	United States	Maximum Operating Pressure	300 psi
Vacuum Pressure Rating	28 Inch-Hg	Body Material	Brass, Nickel-plated
Industry	Automotive	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	For Fluid Type	Air
