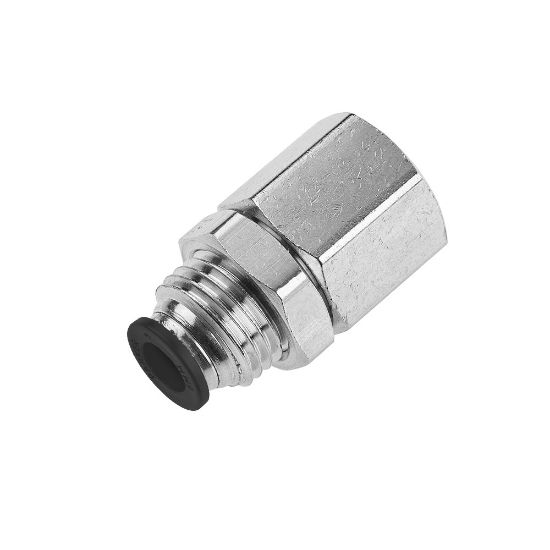

66PLPBH-8-6 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 31 days
Partner Available:	6 in stock

SKU 66PLPBH-8-6

$42.37/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/2"
Connection 2 Size	3/8"	Connection 1 Type	Push-to-Connect
Configuration	Tube to Female Pipe	Connection 2 Type	Female NPTF
Product Style	Bulkhead	Maximum Operating Pressure	300 psi
Body Material	Brass, Nickel-plated	Vacuum Pressure Rating	28 Inch-Hg
Region of Origin	United States	Industry	Industrial Manufacturing Equipment
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
For Fluid Type	Oil	Seal Material	Nitrile
Gripping Ring Material	Stainless Steel	Maximum Operating Temperature	93.3 °C
Tube Material	Polyethylene	Technology	Pneumatics
Minimum Operating Temperature	-17.7 °C	Hex Size	1 inch
Brand	Parker	Specifications Met	UL 94 V-0
Application	Automotive	Materials of Construction	PVDF (Button)
