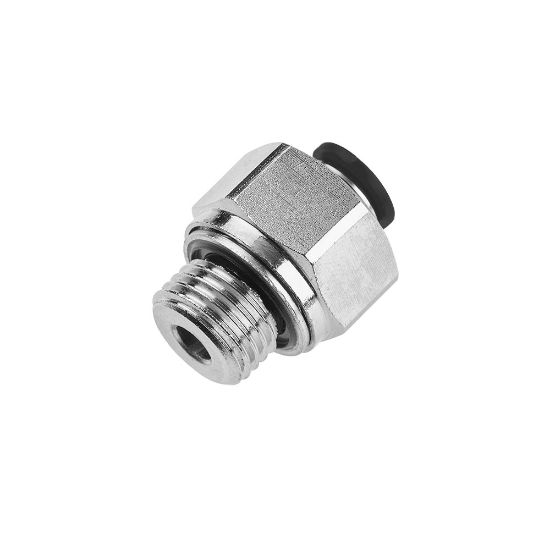

68PLP-6-6G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	17 in stock

SKU 68PLP-6-6G

$31.73/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	3/8"
Connection 2 Size	3/8"	Product Style	Connector
Connection 1 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 2 Type	Male BSPP	Maximum Operating Pressure	20.6 bar
Materials of Construction	PVDF (Button)	Region of Origin	United States
Body Material	Brass, Nickel-plated	Vacuum Pressure Rating	28 Inch-Hg
Division	Fluid System Connectors Division	Industry	Industrial Manufacturing Equipment
Division	Fluid System Connectors Division	For Fluid Type	Oil
Maximum Operating Temperature	200 °F	Tube Material	Nylon
Seal Material	Nitrile	Technology	Fluid & Gas Handling
Gripping Ring Material	Stainless Steel	Minimum Operating Temperature	-17.7 °C
Hex Size	3/4 inch	Brand	Parker
Specifications Met	UL 94 V-0	Application	Vacuum
