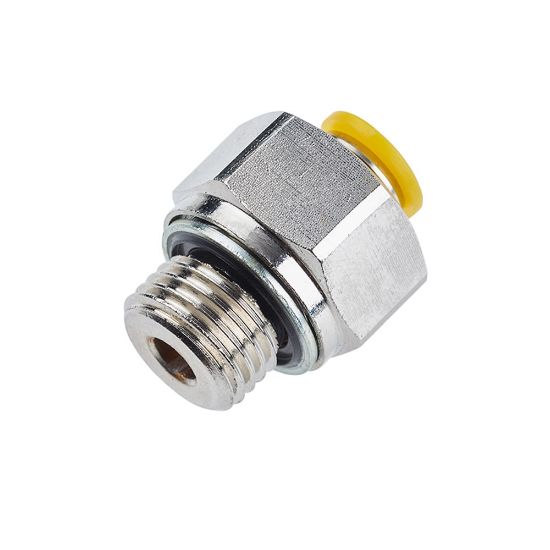

68PLP-6M-4G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	4 in stock

SKU 68PLP-6M-4G

$7.26/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	6 mm
Connection 2 Size	1/4"	Product Style	Connector
Connection 1 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 2 Type	Male BSPP	Industry	Semiconductor
Division	Fluid System Connectors Division	For Fluid Type	Air
Maximum Operating Temperature	200 °F	Seal Material	Nitrile
Tube Material	Polyethylene	Technology	Fluid & Gas Handling
Gripping Ring Material	Stainless Steel	Hex Size	3/4 inch
Minimum Operating Temperature	-17.7 °C	Brand	Parker
Specifications Met	UL 94 V-0	Materials of Construction	PVDF (Button)
Application	Automotive	Region of Origin	United States
Maximum Operating Pressure	300 psi	Vacuum Pressure Rating	28 Inch-Hg
Division	Fluid System Connectors Division	Body Material	Brass, Nickel-plated
