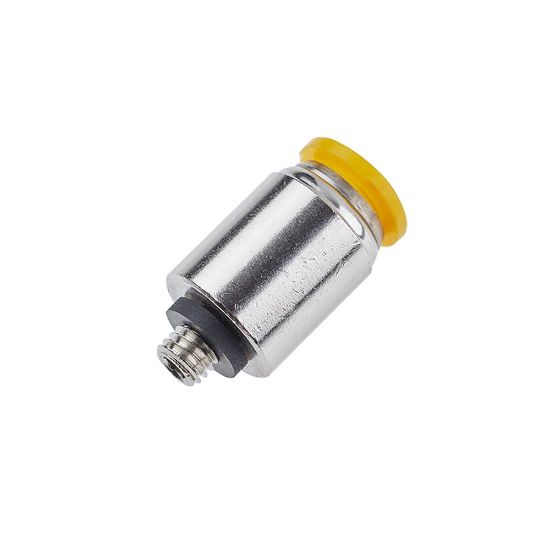

68PLPR-6M-2G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU 68PLPR-6M-2G

$8.34/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	6 mm
Connection 2 Size	1/8"	Connection 1 Type	Push-to-Connect
Configuration	Tube to Pipe	Connection 2 Type	Male BSPP
Product Style	Round Body Connector	Hex Size	4.85 inch
Minimum Operating Temperature	-17.7 °C	Application	Vacuum
Brand	Parker	Specifications Met	UL 94 V-0
Materials of Construction	PVDF (Button)	Region of Origin	United States
Body Material	Brass, Nickel-plated	Maximum Operating Pressure	300 psi
Vacuum Pressure Rating	28 Inch-Hg	Division	Fluid System Connectors Division
Industry	Industrial Manufacturing Equipment	For Fluid Type	Oil
Maximum Operating Temperature	200 °F	Division	Fluid System Connectors Division
Gripping Ring Material	Stainless Steel	Tube Material	Polyethylene
Technology	Fluid & Gas Handling	Seal Material	Nitrile
