W169PLP-4-4 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Name: W169PLP-4-4 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal
SKU: W169PLP-4-4
Price: 7.74 USD
Availability: InStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:

762 in stock

Wichita, KS	296
Kansas City, KS	276
TOPEKA, KS	40
Decatur, IL	37
Olivette, MO	27
Kansas City, KS	25
Peoria, IL	18
COLUMBIA, MO	15
WICHITA, KS	13
Springfield, MO	10
Joplin, MO	5

Partner Available:

5034 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU W169PLP-4-4

$7.74/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4"
Connection 2 Size	1/4"	Connection 1 Type	Push-to-Connect
Configuration	Tube to Pipe	Connection 2 Type	Male NPTF
Shape	Elbow 90° - Swivel	Gripping Ring Material	Stainless Steel
Maximum Operating Temperature	200 °F	Seal Material	Nitrile
For Fluid Type	Inert Gases	Division	Fluid System Connectors Division
Hex Size	9/16 inch	Minimum Operating Temperature	0 °F
Tube Material	Polyethylene	Technology	Fluid & Gas Handling
Materials of Construction	PVDF (Button)	Dimensional Weight	0.2179 lb
Application	Packaging	Brand	Parker
Specifications Met	UL 94 V-0	Division	Fluid System Connectors Division
Industry	Industrial Manufacturing Equipment	Vacuum Pressure Rating	28 Inch-Hg
Body Material	Brass, Nickel-plated	Region of Origin	United States
Maximum Operating Pressure	300 psi

Customers who bought this item also bought

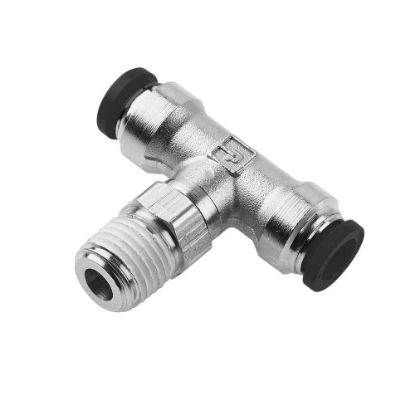

W172PLP-4-4 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal
