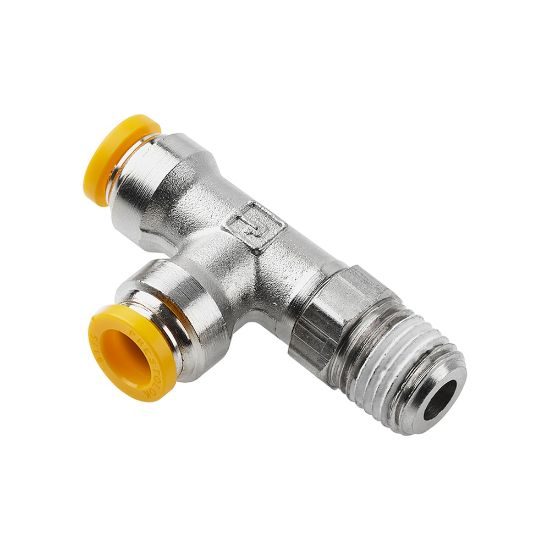

W171PLP-6M-4R - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU W171PLP-6M-4R

$10.22/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	6 mm
Connection 2 Size	1/4"	Connection 1 Type	Push-to-Connect
Connection 3 Size	6 mm	Connection 3 Type	Push-to-Connect
Configuration	Tube to Pipe	Connection 2 Type	Male BSPT
Shape	Run Tee - Swivel	Region of Origin	United States
Maximum Operating Pressure	20.6 bar	Materials of Construction	PVDF (Button)
Application	Vacuum	Industry	Semiconductor
Division	Fluid System Connectors Division	For Fluid Type	Inert Gases
Body Material	Brass, Nickel-plated	Division	Fluid System Connectors Division
Vacuum Pressure Rating	28 Inch-Hg	Technology	Fluid & Gas Handling
Tube Material	Polyurethane 90 to 95 Durometer Shore A	Maximum Operating Temperature	200 °F
Seal Material	Nitrile	Gripping Ring Material	Stainless Steel
Brand	Parker	Minimum Operating Temperature	0 °F
Specifications Met	UL 94 V-0	Hex Size	9/16 inch
