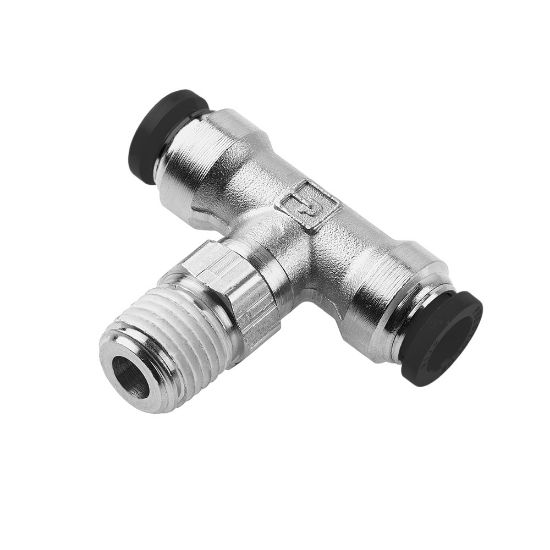

W172PLP-4-6 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Name: W172PLP-4-6 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal
SKU: W172PLP-4-6
Price: 10.27 USD
Availability: LimitedAvailability

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:

8 in stock

WICHITA, KS	2
COLUMBIA, MO	2
Kansas City, KS	2
Peoria, IL	2

Partner Available:

51 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU W172PLP-4-6

$10.27/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4"
Connection 2 Size	1/4"	Connection 1 Type	Push-to-Connect
Connection 3 Size	3/8"	Connection 2 Type	Push-to-Connect
Configuration	Tube to Pipe	Connection 3 Type	Male NPTF
Shape	Branch Tee - Swivel	Industry	Industrial Manufacturing Equipment
Division	Fluid System Connectors Division	Region of Origin	United States
Maximum Operating Pressure	300 psi	Vacuum Pressure Rating	28 Inch-Hg
Body Material	Brass, Nickel-plated	Seal Material	Nitrile
Maximum Operating Temperature	200 °F	Gripping Ring Material	Stainless Steel
Division	Fluid System Connectors Division	For Fluid Type	Oil
Minimum Operating Temperature	-17.7 °C	Hex Size	11/16 inch
Technology	Fluid & Gas Handling	Tube Material	Rigid Nylon
Materials of Construction	PVDF (Button)	Specifications Met	UL 94 V-0
Brand	Parker	Application	Oil Lines
