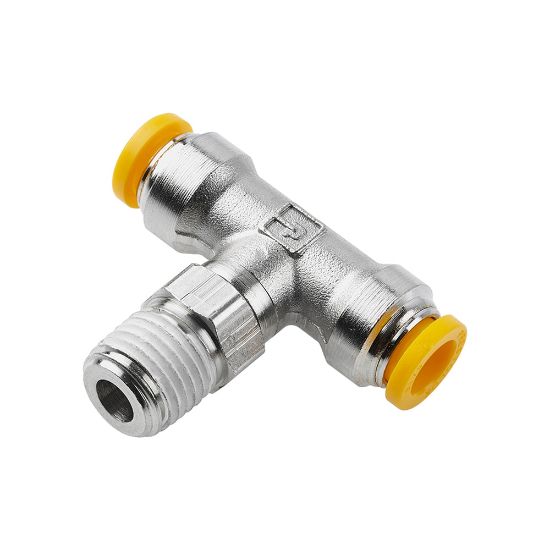

W172PLP-4M-4R - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	Backordered

SKU W172PLP-4M-4R

$15.46/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	4 mm
Connection 1 Type	Push-to-Connect	Connection 3 Size	1/4"
Connection 2 Size	4 mm	Connection 2 Type	Push-to-Connect
Configuration	Tube to Pipe	Connection 3 Type	Male BSPT
Shape	Branch Tee - Swivel	Maximum Operating Pressure	300 psi
Region of Origin	United States	Body Material	Brass, Nickel-plated
Materials of Construction	PVDF (Button)	Application	Air Lines
Division	Fluid System Connectors Division	Industry	Automotive
For Fluid Type	Air	Vacuum Pressure Rating	28 Inch-Hg
Division	Fluid System Connectors Division	Tube Material	Polypropylene
Technology	Pneumatics	Gripping Ring Material	Stainless Steel
Seal Material	Nitrile	Maximum Operating Temperature	200 °F
Minimum Operating Temperature	0 °F	Brand	Parker
Specifications Met	UL 94 V-0	Hex Size	9/16 inch
