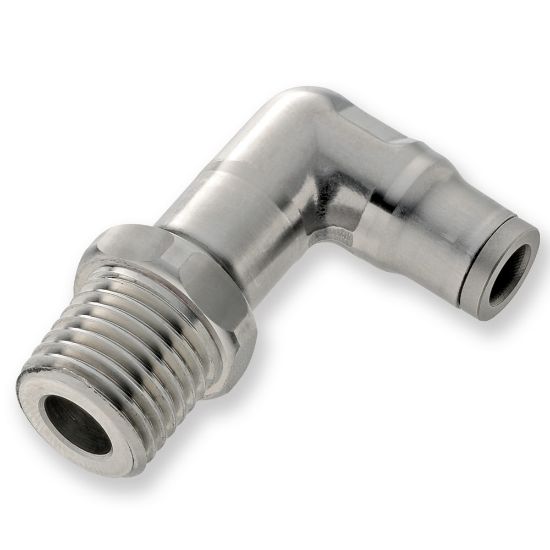

169PLSX-8M-2R - Push-to-Connect Pneumatic Stainless Steel Fittings - Prestolok PLS

Parker's PLS push-to-connect pneumatic fittings conforms to FDA standards permitting permanent contact with food and other aggressive environments.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 169PLSX-8M-2R

$103.01/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	8 mm
Connection 2 Size	1/8"	Connection 1 Type	Push-to-Connect
Connection 2 Type	Male BSPT Threads	Product Style	Tube to Pipe
Shape	Extended 90° Elbow	Specifications Met	UL 94 V-0
Connection 2 Type	Male	Connection 1 Size	8 mm Tube O.D.
Body Material	316L Stainless Steel	Connection 1 Type	Push-to-Connect
Application	Medical	Division	Fluid System Connectors Division
Shape	Elbow 90° Extended	Tube Material	Rigid Nylon
Connection 2 Size	n/a
