*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

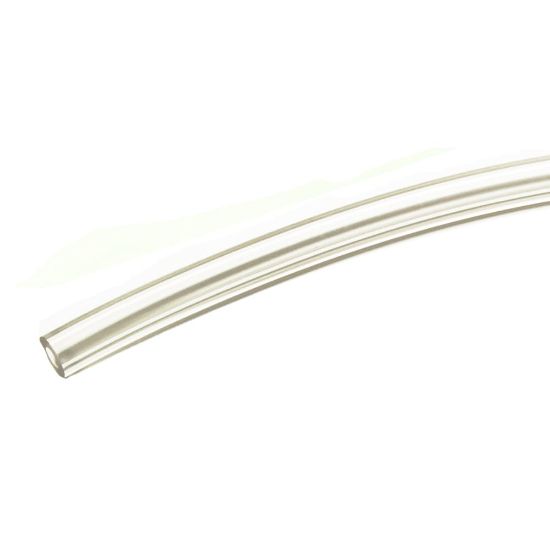

PV2016-1 - PVC Clear Vinyl Tubing

Parker Clear Vinyl Tubing - Series PV is a DEHP-free PVC tubing. It is one of the most economical FDA compliant tubing Parker manufactures. Features exceptional purity, clarity and flexibility.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	208 in stock

SKU PV2016-1

$6.76/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Tube I.D. (inch)	1
Tube O.D. (inch)	1-1/4	Tube Wall Thickness	0.125
Weight	0.342 kg/m	Maximum Operating Pressure	1.7 bar
Minimum Operating Temperature	-40 °C	Color	Clear
Tube Inside Diameter	25.4 mm	Specifications Met	FDA
Tube Outside Diameter	31.8 mm	Application	Instrumentation
Compatible Fitting	Par-Barb®	Maximum Operating Temperature	65 °C
Media	Air	Tube Material	PVC (polyvinyl chloride)
Length per Package	50 ft	Division	Parflex Division
Size	1-1/4 inch
