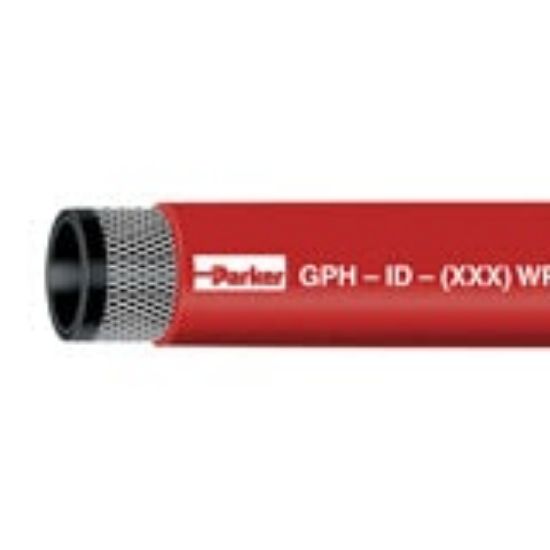

GPH-10RED250 - PVC General Purpose Hose, Series GPH

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU GPH-10RED250

$5.45/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Red
Hose I.D. (inch)	5/8	Maximum Working Pressure (psi)	300
Length per Package	250 ft	Division	Hose Products Division
Compatible Fitting	HY Series	Maximum Operating Temperature	150 °F
Media	Lubricants (Oil Mist)	Hose Inner Tube Material	Prime PVC
Minimum Operating Temperature	-15 °F	Hose Reinforcement Material	2 Plies of Textile
Cover Material	PVC	Cover Structure	Smooth
Minimum Bend Radius	2.8 inch	Application	PVC Hose
Inside Diameter	5/8 inch	Maximum Operating Pressure	300 psi
Package Type	Coil	Outside Diameter	23.1 mm
Weight	0.10 kg	Vacuum Pressure Rating	10 Inch-Hg
Cover Color	Red

Product resources

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
