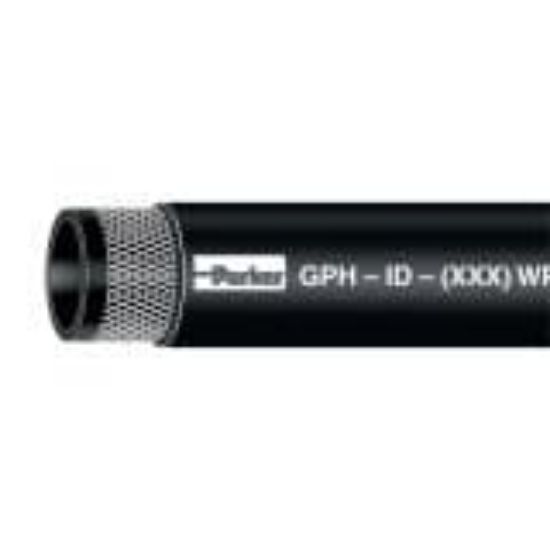

GPH-4BLK500RL - PVC General Purpose Hose, Series GPH

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU GPH-4BLK500RL

$1.98/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Color	Black	Maximum Working Pressure (psi)	300
Hose Reinforcement Material	2 Plies of Textile	Minimum Operating Temperature	-15 °F
Cover Structure	Smooth	Cover Material	PVC
Minimum Bend Radius	0.8 inch	Application	PVC Hose
Maximum Operating Pressure	20.7 bar	Inside Diameter	1/4 inch
Outside Diameter	13 mm	Package Type	Coil
Vacuum Pressure Rating	23 Inch-Hg	Cover Color	Black
Weight	0.08 lb	Division	Hose Products Division
Length per Package	500 ft	Maximum Operating Temperature	65 °C
Compatible Fitting	HY Series	Media	Air
Hose Inner Tube Material	Black

Product resources

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
