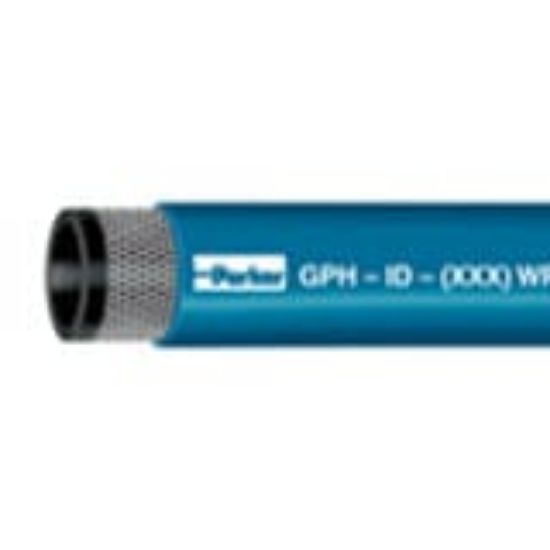

GPH-4BLU500RL - PVC General Purpose Hose, Series GPH

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	174 in stock

SKU GPH-4BLU500RL

$2.57/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Color	Blue	Maximum Working Pressure (psi)	300
Weight	0.08 lb	Outside Diameter	13 mm
Maximum Operating Pressure	20.7 bar	Vacuum Pressure Rating	23 Inch-Hg
Inside Diameter	6.4 mm	Cover Color	Blue
Length per Package	500 ft	Division	Hose Products Division
Hose Inner Tube Material	Prime PVC	Compatible Fitting	HY Series
Maximum Operating Temperature	150 °F	Media	Chemicals
Cover Material	PVC	Minimum Bend Radius	0.8 inch
Minimum Operating Temperature	-26 °C	Hose Reinforcement Material	2 Plies of Textile
Cover Structure	Smooth	Application	PVC Hose
Package Type	Coil

Product resources

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
