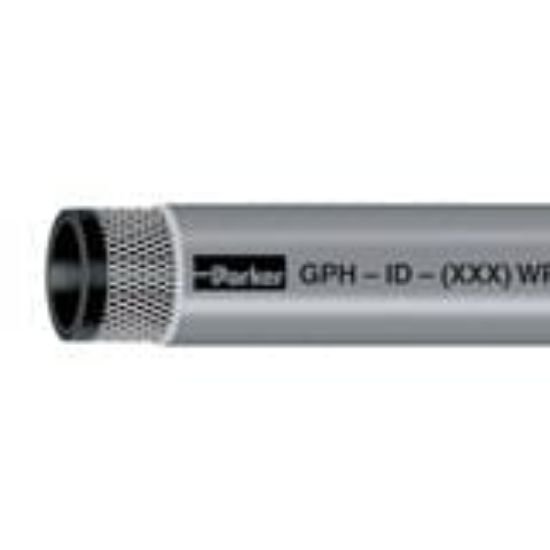

GPH-4GRA500RL - PVC General Purpose Hose, Series GPH

Name: GPH-4GRA500RL - PVC General Purpose Hose, Series GPH
SKU: GPH-4GRA500RL
Price: 1.98 USD
Availability: InStock

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

Manufacturer: Parker

Availability:

593 in stock

Wichita, KS

593

Partner Available:

643 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU GPH-4GRA500RL

$1.98/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Color	Gray	Maximum Working Pressure (psi)	300
Hose Inner Tube Material	Black	Media	Water
Cover Material	PVC	Cover Structure	Smooth
Minimum Bend Radius	0.8 inch	Minimum Operating Temperature	-15 °F
Application	PVC Hose	Hose Reinforcement Material	2 Plies of Textile
Package Type	Coil	Outside Diameter	13 mm
Cover Color	Gray	Inside Diameter	6.4 mm
Weight	0.08 lb	Vacuum Pressure Rating	23 Inch-Hg
Maximum Operating Pressure	20.7 bar	Compatible Fitting	HY Series
Maximum Operating Temperature	150 °F	Length per Package	500 ft
Division	Hose Products Division
