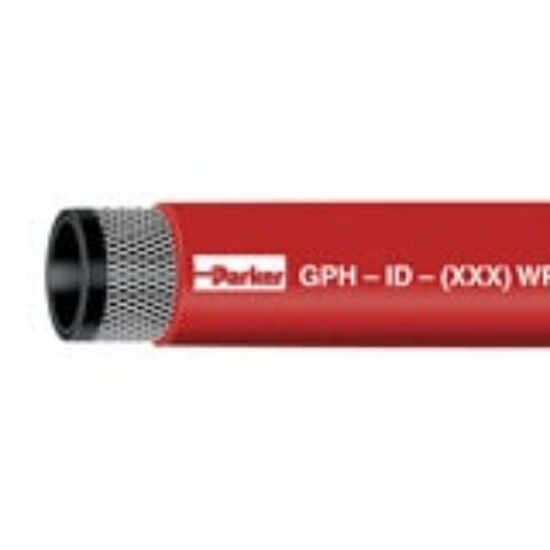

GPH-6RED500RL - PVC General Purpose Hose, Series GPH

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 20 days
Partner Available:	Backordered

SKU GPH-6RED500RL

$2.17/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Color	Red	Maximum Working Pressure (psi)	300
Maximum Operating Temperature	65 °C	Compatible Fitting	HY Series
Hose Inner Tube Material	Black	Media	Air
Cover Material	PVC	Minimum Operating Temperature	-26 °C
Hose Reinforcement Material	2 Plies of Textile	Cover Structure	Smooth
Minimum Bend Radius	1 inch	Package Type	Coil
Application	PVC Hose	Maximum Operating Pressure	300 psi
Weight	0.12 lb	Inside Diameter	9.5 mm
Vacuum Pressure Rating	23 Inch-Hg	Outside Diameter	0.640 inch
Cover Color	Red	Length per Package	500 ft
Division	Hose Products Division
