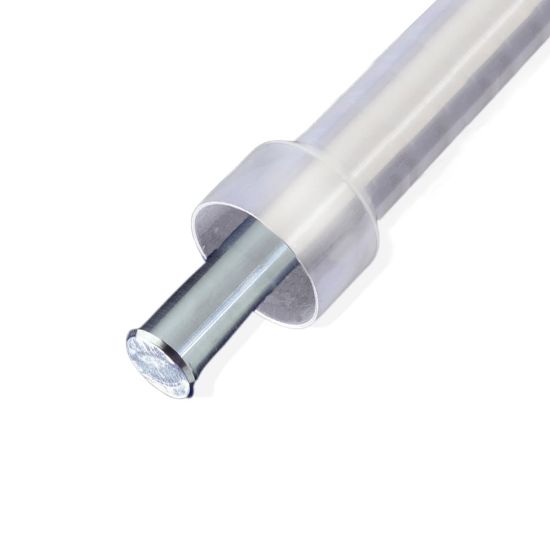

HS2TFI7/16-NT-SP - QPL PTFE AWG & Fractional 2:1 Heat Shrinkable Tubing

PTFE Heat Shrinkable Tubing protects components from heat, sparks and contaminants. When heated, the heat shrink tube conforms to the size and shape of the original object, providing a protective covering.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU HS2TFI7/16-NT-SP

$14.03/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Product Style	Heavy Wall
Minimum Expanded Inside Diameter	0.580	Recovered Inside Diameter	0.448
Product Style	Fractional	Specifications Met	ASTM 2902, Type I
Application	High Temperature Applications	Weight	0.0411
Recovered Inside Diameter	0.448	Minimum Expanded Inside Diameter	0.58
Maximum Operating Temperature	500	Size	7/16
Length per Package	100	Division	Parflex Division
Minimum Operating Temperature	-75	Color	Natural
Recovered Wall Thickness	0.76	Tube Material	Polytetrafluoroethylene (PTFE)
Product Type	Heat Shrink Tubing
