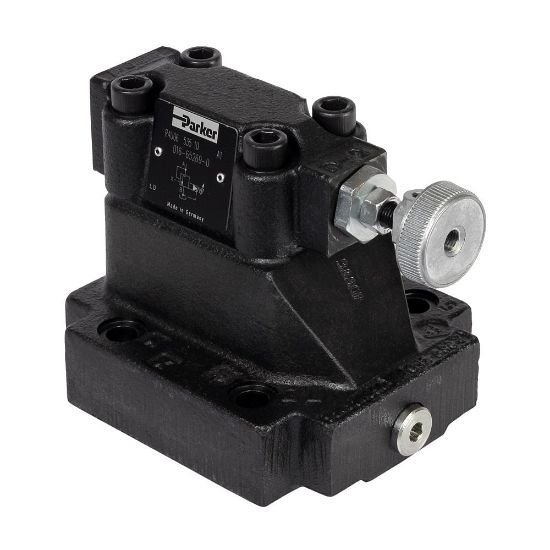

R4U105331109G0QA1

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU R4U105331109G0QA1

$3,929.52/each

Products specifications

Attribute name	Attribute value
UOM	EA	Operation Type	Pilot
Port Connection	NG32 / CETOP 10	For Fluid Type	Hydraulic Oil
Flow Rate	650 lpm	Material	Cast Iron
Drain Option	Drain Line External from Subplate	Mounting Option	Subplate Mounting
Input Voltage	24 VDC	Switching Option	Vent Function: Solenoid not Active, Unpressurized Circulation
Minimum Operating Temperature	-20 °C	Pressure Adjustment Control Type	Hand Knob
Actuation Type	Manual	Maximum Operating Temperature	60 °C
Maximum Pressure Setting	210 bar	Product Series	Pressure valve
Pressure Control Range	210 bar	Seal Material	NBR
