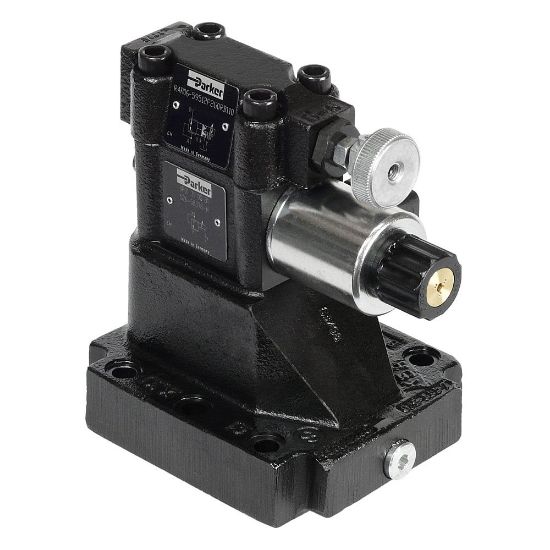

R4V0353110P2G0RA5

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU R4V0353110P2G0RA5

$5,701.92/each

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Cast Iron
Port Connection	NG10 / CETOP 05	Operation Type	Pilot
For Fluid Type	Water Glycol	Flow Rate	90 lpm
Switching Option	With Mechanical Maximum Pressure Adjustment	Input Voltage	12 VDC
Product Series	Pressure valve	Actuation Type	Solenoid
Marking	Standard	Pressure Control Range	105 bar
Mounting Option	Subplate Mounting	Drain Option	Drain Line Internal
Pressure Adjustment Control Type	Hand Knob	Maximum Operating Temperature	60 °C
Seal Material	FPM	Minimum Operating Temperature	-20 °C
