*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

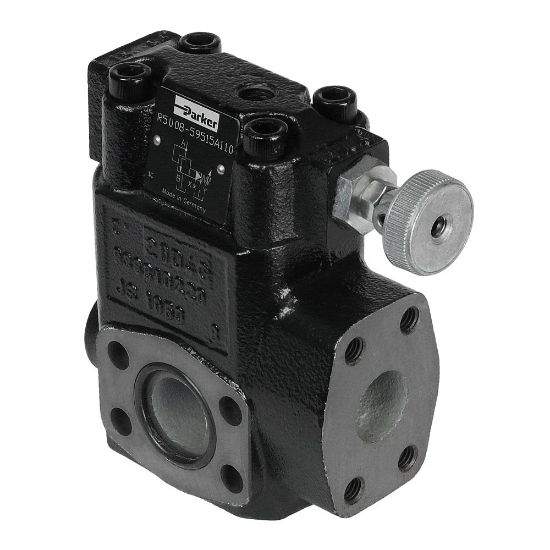

R5U0859344A1

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU R5U0859344A1

$3,546.48/each

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Cast Iron
Operation Type	Pilot	Flow Rate	300 lpm
Port Connection	SAE 1	Flange Size	SAE61
For Fluid Type	Hydraulic Oil	Pressure Adjustment Control Type	Cylinder Lock
Actuation Type	Manual	Body Type	3-Port, M, Y1, X = G 1/4
Maximum Pressure Setting	210 bar	Maximum Operating Temperature	60 °C
Pressure Control Range	210 bar	Product Series	Pressure valve
Seal Material	NBR	Drain Option	Drain Line External Via Port X1 or X2, External
Mounting Option	Flanged According Sae	Minimum Operating Temperature	-20 °C
