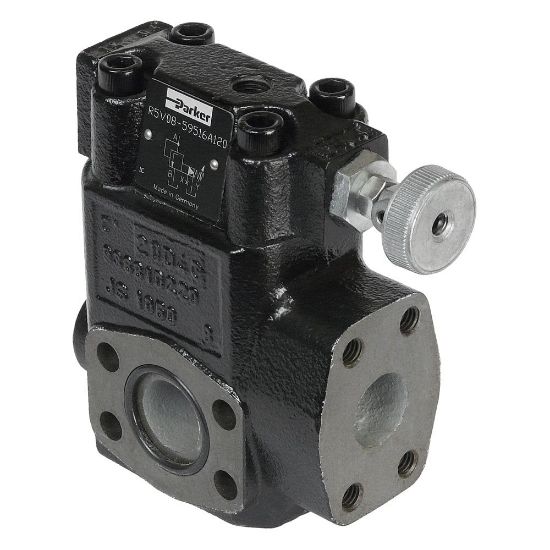

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

R5V1239332A5

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU R5V1239332A5

$3,316.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Operation Type	Pilot
Port Connection	SAE 1 1/2	For Fluid Type	Water Glycol
Flow Rate	600 lpm	Material	Cast Iron
Technology	Hydraulic	Media	Hydraulic oil
Port Size	SAE 61	Application	Industrial Hydraulic
Drain Option	Drain Line Internal	Minimum Kinematic Viscosity	20 cSt
Seal Material	FPM	Actuation Type	Manual
Maximum Operating Temperature	60 °C	Maximum Fluid Temperature	70 °C
Maximum Kinematic Viscosity	400 cSt	Pressure Control Range	210 bar
Body Type	3-Port, Y1, X1, M = G 1/4	Maximum Ambient Temperature	60.0 °C
Pressure Adjustment Control Type	Acorn Nut with Lead Seal	Minimum Fluid Temperature	-20 °C
Product Series	Pressure valve	Mounting Option	Flanged According Sae61
Minimum Ambient Temperature	-20 °C	Minimum Operating Temperature	-20 °C
