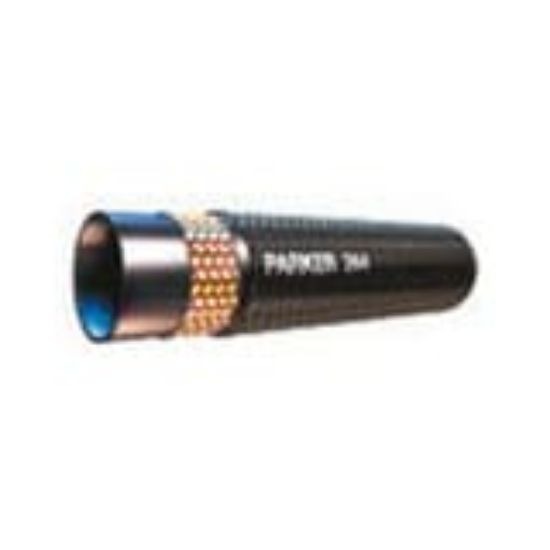

244-20 - Refrigerant/Air Conditioning Hose 350-500 PSI – 244 Hose

Parker's 244 hose is a refrigerant hose that has a pressure range of 350-500 PSI, designed for the rigorous requirements of bus and transit applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	3 in stock

SKU 244-20

$56.32/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Hose Inner Tube Material	Butyl Rubber	Maximum Operating Temperature	125 °C
Compatible Fitting	26 Series	Media	Coolants
Division	Hose Products Division	Nominal Hose Inside Diameter	29 mm
Application	Refrigerant 134a	Inside Diameter	29 mm
Weight	0.56 lb/ft	Maximum Operating Pressure	500 psi
Outside Diameter	1.5 inch	Hose Cover Type	Standard Cover
Minimum Operating Temperature	-22 °F	Minimum Bend Radius	9 inch
Hose Reinforcement Material	1 Braid of Steel Wire	Specifications Met	SAE J2064, Type B Class I
