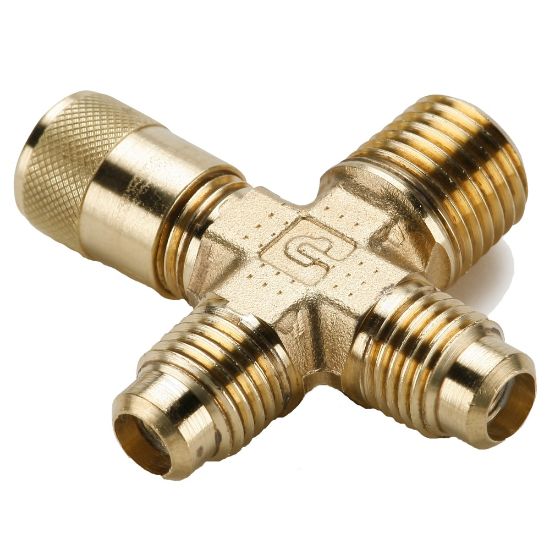

AVC1-4 - Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 56 days
Partner Available:	2 Limited Stock

SKU AVC1-4

$111.16/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Tube O.D. (inch)	1/4	Connection 2 Style	Male Pipe
Connection 2 Thread Size (inch)	1/4	Style	Flare to Pipe
Connection 1 Style	SAE Male Flare	Shape	Male Cross
Connection 2 Solder O.D. (inch)	5/16	Division	Fluid System Connectors Division
Media	Fluorocarbon Refrigerants	Maximum Operating Pressure	34 bar
Maximum Operating Temperature	220 °F	Minimum Operating Temperature	-20 °F
Body Material	Brass	Specifications Met	Valve Core Meets ARI Standard 720
Nut Material	Brass
