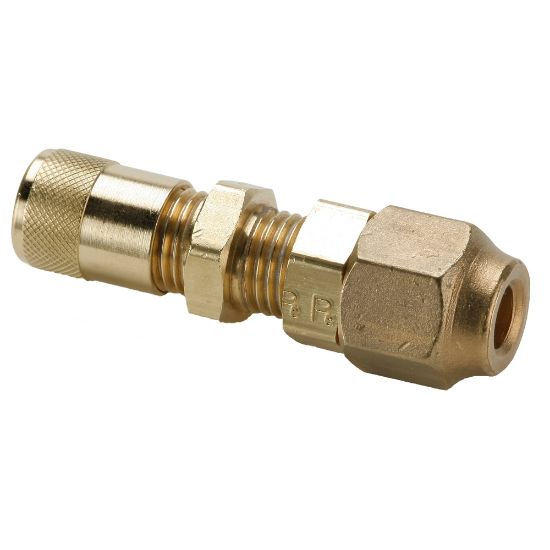

AVU2BH-4 - Refrigeration Access Valves

Parker's access valves offer low cost access ports for refrigeration service. All fittings feature 1/4" SAE male flare access ports and are furnished with a finger tight quick seal cap.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 59 days
Partner Available:	Backordered

SKU AVU2BH-4

$22.14/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	na
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Tube O.D. (inch)	1/4
Style	Flare to Flare	Connection 1 Style	SAE Male Flare
Connection 2 Solder O.D. (inch)	na	Shape	Bulkhead Union
Connection 2 Style	Flare	Division	Fluid System Connectors Division
Media	Fluorocarbon Refrigerants	Maximum Operating Pressure	34 bar
Maximum Operating Temperature	104 °C	Minimum Operating Temperature	-28 °C
Body Material	Brass	Specifications Met	Valve Core Meets ARI Standard 720
Nut Material	Brass
