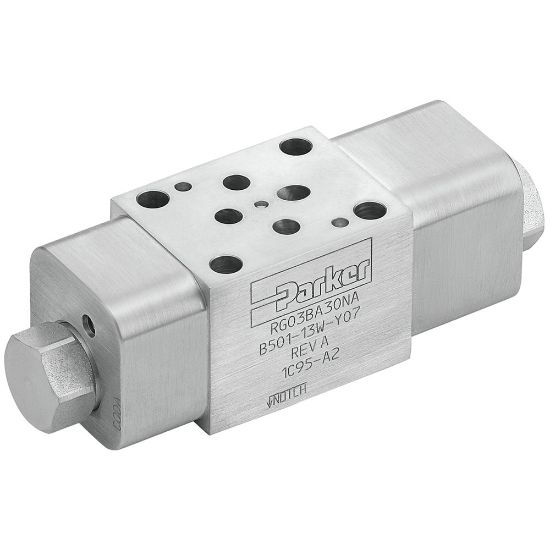

RG05BA30ND - Regeneration Sandwich Valve – RG Series

Parker’s RG series valve is a full time regenerative valve assembly.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 194 days
Partner Available:	Backordered

SKU RG05BA30ND

$2,516.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	NFPA D05; CETOP 5; NG10
Port Connection	Regeneration from from B to A	Seal Material	Nitrile
Valve Body Material	Ductile Iron	Maximum Flow Rate	25 Gal/min
Division	Hydraulic Valve Systems Division	Seal Material	Nitrile
Maximum Operating Temperature	+122	Allowable Circuit Leakage	<1 DPM
Media	Oil	Cracking Pressure	2 bar
Minimum Operating Temperature	-4	Product Style	Full Time Regeneration Valve
Mounting Type	Subplate	Filter Efficiency Rating	ISO 4406 (1999); 18/16/13 (meet NAS 1638:7)
Actuation Type	Hydraulic Pressure	Maximum Operating Pressure	345 bar
Weight	6.9 lb	Body Material	Ductile Iron
