*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

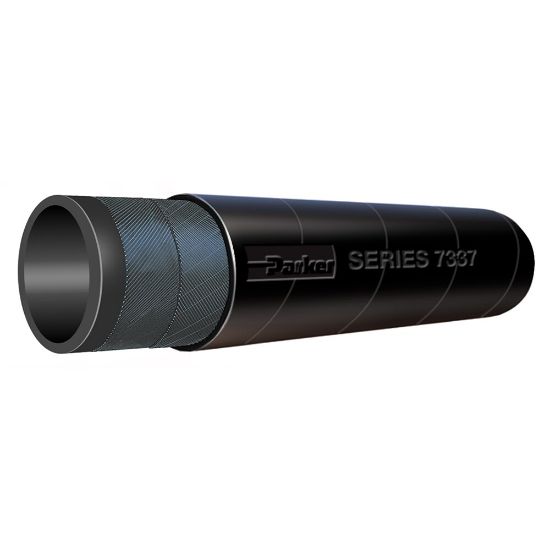

7337-3002 - Reinforced Conduit Hose, Series 7337

Reinforced Conduit Hose is designed as a durable cable cover to 180°F, Series 7337

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	25 in stock

SKU 7337-3002

$38.70/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3
Cover Color	Black	Outside Diameter	3.4 inch
Weight	2.04 kg/m	Maximum Operating Pressure	n/a
Inside Diameter	76.2 mm	Minimum Operating Pressure	n/a
Maximum Operating Temperature	180 °F	Hose Inner Tube Material	Black
Division	Hose Products Division	Cover Material	Synthetic Rubber
Minimum Operating Temperature	-34 °C	Media	Air
Application	Industrial	Minimum Bend Radius	n/a
Hose Reinforcement Material	2 Plies of Textile	Specifications Met	MSHA

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
