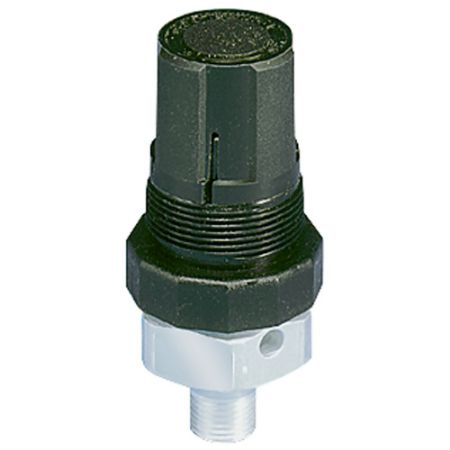

Relief Valves - 130 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The 130 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. This compact, sensitive diaphragm-type relief valve can be used where gradual proportional relief is required. It contains a top adjustment knob that adjusts relief range, same as a miniature regulator. There are four spring ranges (0-15, 0-25, 0-50 and 0-100 PSIG) available.
Markets:
• Factory Automation
• Heavy Industries
Features/Benefits:
• Compact design saves space
• Top adjustment knob
• Durable brass body
• Protects pneumatic circuit or system
Applications:
• Industrial environment
• General pneumatic assembly
| Action | SKU | Availability | Partner Available | Price | UOM | Available Accessories | Pressure Relief Setting (psig) | Adjustment Mechanism | Operating Temperature | Port Type | Body Material | Pressure Relief Setting | Division | Adjustment Screw Material | Maximum Inlet Pressure Rating | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 130-02A | Backordered | Backordered | $55.18/each | EA | W/O panel mount nut | 0-25 | Polypropylene Push-Pull Locking Knob | +4° to +49° °C | Male<br>NPT │ BSPP | Aluminum | 0 to 100 psig | Pneumatic Division | Zinc Plated Steel Adjusting Screw and Spring | 20.7 barg | 1/4 | |
| 130-02AA | Backordered | Backordered | $59.15/each | EA | W/O panel mount nut | 0-15 | Polypropylene Push-Pull Locking Knob | +4° to +49° °C | Male<br>NPT │ BSPP | Aluminum | 0 to 100 psig | Pneumatic Division | Zinc Plated Steel Adjusting Screw and Spring | 300 psig | 1/4 | |
| 130-02AAP | Backordered | Backordered | $62.68/each | EA | With panel mount nut | 0-15 | Polypropylene Push-Pull Locking Knob | +4° to +49° °C | Male<br>NPT │ BSPP | Aluminum | 0 to 6.9 barg | Pneumatic Division | Zinc Plated Steel Adjusting Screw and Spring | 20.7 barg | 1/4 | |
| 130-02AP | Backordered | Backordered | POR | EA | With panel mount nut | 0-25 | Polypropylene Push-Pull Locking Knob | 40 to 120 | NPT (Male)│BSPP¦(Male) | Aluminum | 0 to 100 | Pneumatic Division | Steel, Zinc-plated (adjusting screw and spring) | 300 | 1/4 | |
| 130-02B | Backordered | Backordered | $55.18/each | EA | W/O panel mount nut | 0-50 | Polypropylene Push-Pull Locking Knob | 40 to 120 | NPT (Male)│BSPP¦(Male) | Aluminum | 0 to 100 | Pneumatic Division | Steel, Zinc-plated (adjusting screw and spring) | 300 | 1/4 | |
| 130-02BP | Backordered | Backordered | $58.71/each | EA | With panel mount nut | 0-50 | Polypropylene Push-Pull Locking Knob | +40° to +120° °F | Male<br>NPT │ BSPP | Aluminum | 0 to 6.9 barg | Pneumatic Division | Zinc Plated Steel Adjusting Screw and Spring | 20.7 barg | 1/4 | |
| 130-02C | Backordered | 2 Limited Stock | $71.74/each | EA | W/O panel mount nut | 0-100 | Polypropylene Push-Pull Locking Knob | 40 to 120 | NPT (Male)│BSPP¦(Male) | Aluminum | 0 to 100 | Pneumatic Division | Steel, Zinc-plated (adjusting screw and spring) | 300 | 1/4 | |
| 130-02CP | Backordered | Backordered | $58.71/each | EA | With panel mount nut | 0-100 | Polypropylene Push-Pull Locking Knob | +40° to +120° °F | Male<br>NPT │ BSPP | Aluminum | 0 to 100 psig | Pneumatic Division | Zinc Plated Steel Adjusting Screw and Spring | 20.7 barg | 1/4 |
