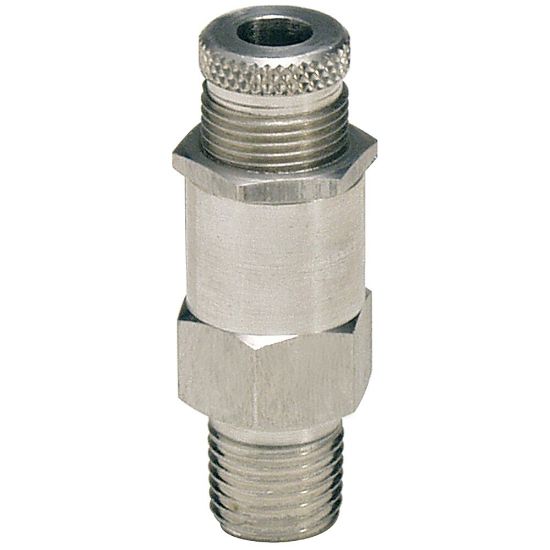

RV01A1N045 - Relief Valves - RV Series

RV01 series is a compact relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU RV01A1N045

$42.84/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Range (psig)	10-55
Seal Material	Buna	Pressure Relief Setting (psig)	45
Port Size	1/4"	Adjustment Mechanism	Knurled Knob
Port Type	NPT	Operating Temperature	+32° to +200° °F
Pressure Relief Setting	45 psig	Body Material	Aluminum
Division	Pneumatic Division	Adjustment Screw Material	Steel Locking Nut and Spring
Maximum Inlet Pressure Rating	20.7 barg

Product resources

Literature and Reference Materials

MRO Pneumatic Airline Accessories Catalog (PDF)
Relief Valves, Installation and Service Manuals (PDF)
