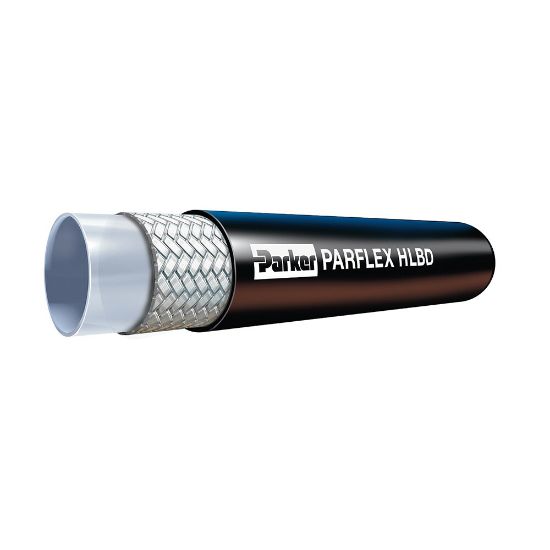

HLBD02 - Remote Grease Hose 3000 psi - HLB

Name: HLBD02 - Remote Grease Hose 3000 psi - HLB
SKU: HLBD02
Price: 1.85 USD
Availability: InStock

The Parker HLB Grease Hose is a cost effective solution that is MSHA accepted and is more compact than comparable rubber grease hoses. It is designed for grease and lubrication lines in agriculture, construction or mobile equipment.

Manufacturer: Parker

Availability:

5174 in stock

COLUMBIA, MO	2,128
Wichita, KS	1,622
Olivette, MO	674
Kansas City, KS	512
WICHITA, KS	82
TOPEKA, KS	60
Joplin, MO	56
Springfield, MO	35
Decatur, IL	3

Partner Available:

14704 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU HLBD02

$1.85/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/8
Division	Parflex Division	Size	-2
Hose Inner Tube Material	Polyamide (PA)	Compatible Fitting	CY Series
Maximum Operating Temperature	100 °C	Media	Petroleum Hydraulic Fluids
Design Factor	4:1	Minimum Operating Temperature	-40 °F
Cover Material	Polyurethane	Minimum Bend Radius	1/2 inch
Specifications Met	SAE J517 and 100R7	Hose Reinforcement Material	Fiber
Application	Transportation	Weight	0.03 lb/ft
Maximum Operating Pressure	207 bar	Outside Diameter	0.320 inch
Inside Diameter	3.2 mm

Customers who bought this item also bought

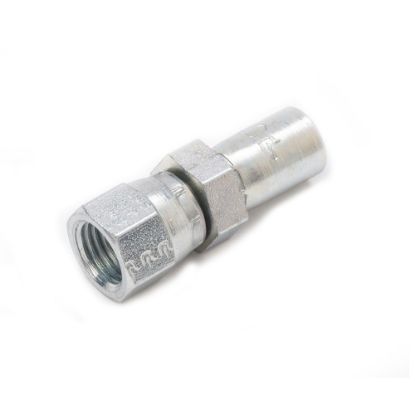

106CY-2-2 - Permanent Fittings for Parflex Hose – CY Series

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

$29.58/each

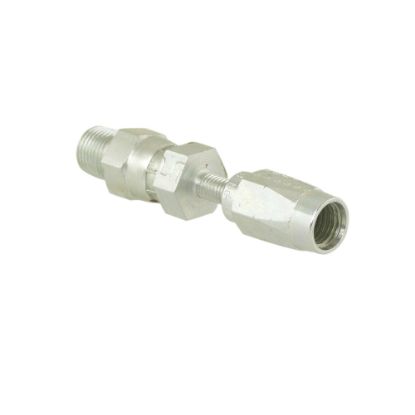

213BU-2-2 - Field Attachable Fittings for HLB Hose – BU Series
