926697Q - Replacement Elements - CN Series

High efficiency genuine replacement elements for Parker 15/40/80CN Series medium pressure hydraulic filters.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	1 Limited Stock

SKU 926697Q

$110.77/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Length	Length 2	Micron Rating	2 µm
Filter Element Type	02Q Microglass	For Use With	40CN
Division	Hydraulic & Industrial Process Filtration Division EMEA	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils.
Division	Hydraulic & Industrial Process Filtration Division EMEA	Industry	• Industrial Manufacturing Equipment<br/>- Automotive<br/>- Food & Beverage<br/>- Rubber & Plastics<br/>- Metals<br/><br/>• Off-road Machinery<br/>- Agriculture<br/>- Construction<br/>- Forestry<br/>- Lawn & Turf<br/>- Mining<br/>- Materials Handling
Filter Type	Medium Pressure Inline Filter	Product Type	Hydraulic Oil Filter
Technology	Filtration	Operating Pressure	1015
Brand	Parker	Operating Temperature	-40 to 100
Application	• Compressor Lube Oil<br/>• Off-line Filter Loops<br/>• Machine Tools (Automotive Standard)<br/>• Hydrostatic Drive Charge Pumps<br/>• Mobile Equipment<br/>• Pilot Lines for Servo Controls<br/>• Oil Patch Drilling Equipment<br/>• Injectio	Product Series	Replacement Elements - CN Series
Flow Rate	0 to 600 L/min	Media Type	Microglass
Seals	FKM: Fluorocarbon	Collapse Pressure (bar)	10.3 bar
Efficiency βx(C) ≥ 200	4 µ	Collapse Pressure (psi)	150 psi
Pkg Qty	1	UOM	EA
Efficiency βx(C) ≥ 1000	5 µ	Media	2 Micron Absolute
Parker Group	Filtration	Parker Division	Hydraulic Filter
Series	ParFit	Seals	FKM: Fluorocarbon
Efficiency βx(C) ≥ 1000	5 µ	Glue Side Seam Adhesive	Epoxy
Glue Endcaps Adhesive	Epoxy	Media	2 Micron Absolute
Media Type	Microglass	Efficiency βx(C) ≥ 200	4 µ

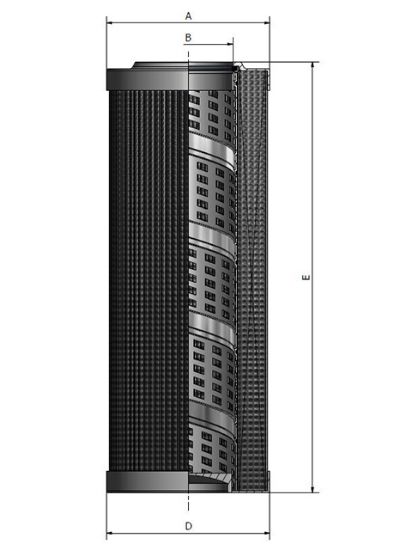

B Dimension	1.701 in (43.2 mm)	Top Endcap Material	Glass reinforced nylon
Bottom Endcap Material	Glass reinforced nylon	E Dimension	1.114 in (28.3 mm)
Media Composition Detail	Multilayer fiberglass with epoxy coated wire mesh on both sides	Inner Support Cylinder Material	Steel zinc plated
D Dimension	0.319 in (8.1 mm)	Collapse Pressure (bar)	10.3 bar
Collapse Pressure (psi)	150 psi	Competitor	POROUS MEDIA
A Dimension	0.319 in (8.1 mm)

Product resources

Literature and Reference Materials

BROCHURE-CN Series Filters (PDF)
