FTAE1B20Q - Replacement Elements - FTA/FTB/FTC Series

Genuine replacement elements for Parker FTA/FTB/FTC tank top mounted return filters.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU FTAE1B20Q

$73.65/each

Products specifications

Attribute name	Attribute value
UOM	EA	Micron Rating	20 µm
Size	Length 1	Seal Material	Fluoroelastomer
Filter Element Type	20Q Microglass	For Use With	FTA
Length	118 mm	Diameter	45 mm
Division	Hydraulic & Industrial Process Filtration Division EMEA	Pkg Qty	1
Collapse Pressure (psi)	150 psi	Efficiency βx(C) ≥ 200	16 µ
Collapse Pressure (bar)	10.3 bar	Seals	FKM: Fluorocarbon
Media Type	Microglass	Media	20 Micron Absolute
Efficiency βx(C) ≥ 1000	20 µ	UOM	EA
Bottom Endcap Material	Glass reinforced nylon	Media	20 Micron Absolute

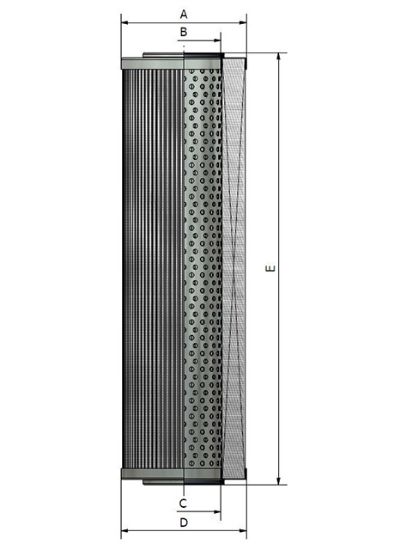

Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	C Dimension	1.024 in (26 mm)
Inner Support Cylinder Material	Steel tin plated	Parker Group	Filtration
Efficiency βx(C) ≥ 1000	20 µ	A Dimension	1.78 in (45.2 mm)
Top Endcap Material	Glass reinforced nylon	Media Type	Microglass
E Dimension	4.661 in (118.4 mm)	Collapse Pressure (bar)	10.3 bar
Glue Endcaps Adhesive	Epoxy	B Dimension	1.024 in (26 mm)
Glue Side Seam Adhesive	Epoxy	Parker Division	Hydraulic Filter
Seals	FKM: Fluorocarbon	Collapse Pressure (psi)	150 psi
D Dimension	1.78 in (45.2 mm)	Series	ParFit
Efficiency βx(C) ≥ 200	16 µ
