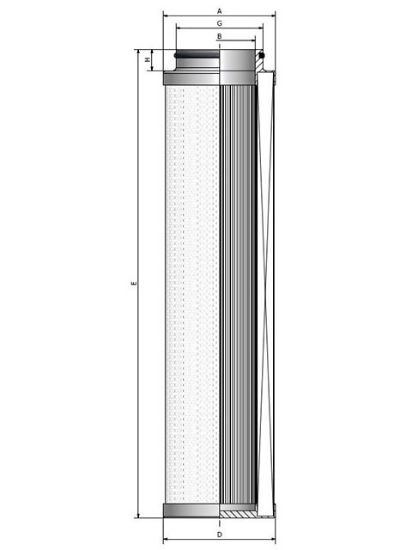

933135Q - Replacement Elements - High Pressure 15P-30P-30PD Series

Parker 15P-30P-30PD series replacement elements are engineered with the latest in Microglass technology. The 3,000 psi 15P-30P-30PD series incorporates many advanced features designed for one reason: to improve your bottom line.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 933135Q

$88.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Micron Rating	20Q Microglass	Length	single
Compatible Series	30P/30PD	Product Type	Hydraulic Filter
Diameter	2.44 inch	Filter Element Type	Cartridge
Cartridge Length	4.9 inch	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	UOM	EA
Collapse Pressure (psi)	350 psi	Media	20 Micron Absolute
Efficiency βx(C) ≥ 1000	20 µ	Collapse Pressure (bar)	24.1 bar
Media Type	Microglass	Seals	FKM: Fluorocarbon
Efficiency βx(C) ≥ 200	16 µ	Pkg Qty	1
Parker Group	Filtration	Parker Division	Hydraulic Filter
Operating Temperature	-40F to 225F (-40C to 107C)	Element Length	Single
Filter Media Code	20Q	Series	ParFit
Seals	FKM: Fluorocarbon	Efficiency βx(C) ≥ 1000	20 µ
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Glue Side Seam Adhesive	Epoxy
Glue Endcaps Adhesive	Epoxy	Media Type	Microglass
Competitor	AIRFIL	Efficiency βx(C) ≥ 200	16 µ
Media	20 Micron Absolute	Top Endcap Material	Glass reinforced nylon
Collapse Pressure (bar)	24.1 bar	Collapse Pressure (psi)	350 psi
D Dimension	2.441 in (62 mm)	E Dimension	4.902 in (124.5 mm)
Bottom Endcap Material	Glass reinforced nylon	A Dimension	2.441 in (62 mm)
H Dimension	1.429 in (36.3 mm)	Inner Support Cylinder Material	Mild steel tin plated
