939065Q - Replacement Elements - High Pressure Filter 100P Series

The Parker high pressure 100P series replacement elements are engineered with the latest in Microglass technology. The element can be serviced with only removing the end of the bowl for applictions where space is premium.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 939065Q

$537.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Location	EMEA and US	Filter Element	05Q Microglass
Filter Housing Series	100P-2	Length	double
Length	Double	Product Series	100P-2
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	05Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
UOM	EA	Efficiency βx(C) ≥ 200	6 µ
Collapse Pressure (psi)	290 psi	Media	5 Micron Absolute
Media Type	Microglass	Collapse Pressure (bar)	20 bar
Pkg Qty	1	Seals	NBR: Nitrile
Media	5 Micron Absolute	Parker Group	Filtration

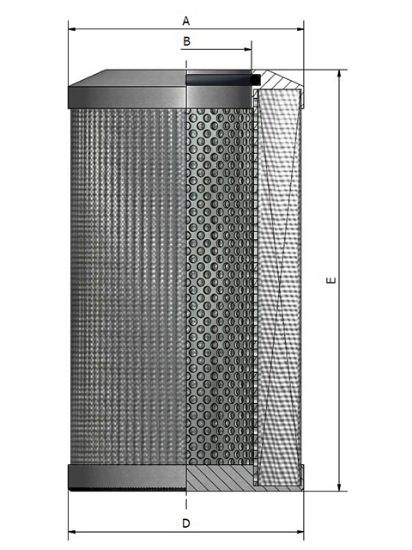

B Dimension	2.244 in (57 mm)	Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides
A Dimension	3.74 in (95 mm)	E Dimension	24.606 in (625 mm)
Series	ParFit	Glue Side Seam Adhesive	Epoxy
Parker Division	Hydraulic Filter	Collapse Pressure (bar)	20 bar
Collapse Pressure (psi)	290 psi	Efficiency βx(C) ≥ 200	6 µ
Top Endcap Material	Mild steel zinc plated	Bottom Endcap Material	Mild steel zinc plated
Glue Endcaps Adhesive	Epoxy	Seals	NBR: Nitrile
Media Type	Microglass	D Dimension	3.74 in (95 mm)
Inner Support Cylinder Material	Mild steel zinc plated
