941386Q - Replacement Elements - High Pressure Filter WPF Series

Parker engineers have developed what soon will be the industry standard in high pressure hydraulic filtration. The 7,000 psi WPF series incorporates many advanced features designed for one reason: to improve your bottom line.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 941386Q

$161.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Compatible Series	WPF2
Length	single	Seal Material	Ethylene Propylene
Micron Rating	02QE microglass	Product Type	Hydraulic Filter Element
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	Coreless
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	UOM	EA
Media	2 Micron Absolute	Efficiency βx(C) ≥ 1000	5 µ
Efficiency βx(C) ≥ 200	4 µ	Collapse Pressure (psi)	300 psi
Media Type	Microglass	Seals	EPR: Ethylene Propylene
Pkg Qty	1	Collapse Pressure (bar)	20.7 bar
Collapse Pressure (bar)	20.7 bar	Glue Side Seam Adhesive	Polyurethane
Parker Division	Hydraulic Filter	Parker Group	Filtration

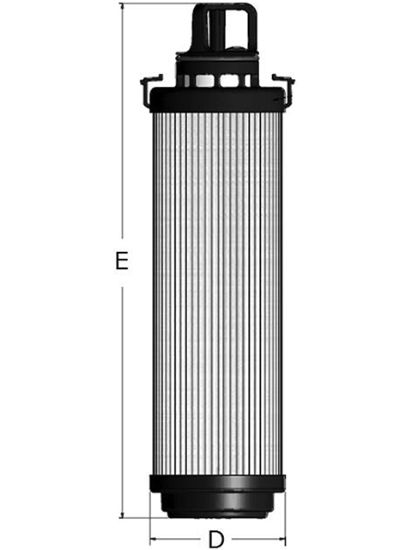

Efficiency βx(C) ≥ 1000	5 µ	D Dimension	2.098 in (53.3 mm)
Top Endcap Material	Glass reinforced nylon	Media Type	Microglass
Efficiency βx(C) ≥ 200	4 µ	Seals	EPR: Ethylene Propylene
Bottom Endcap Material	Glass reinforced nylon	Glue Endcaps Adhesive	Polyurethane
Series	ParFit	E Dimension	9.201 in (233.7 mm)
Media Composition Detail	Multilayer fiberglass with PBT mesh on both sides	Media	2 Micron Absolute
Collapse Pressure (psi)	300 psi
