934892Q - Replacement Elements - Low Pressure Filter Moduflow™ Plus Series

The patented Parker Moduflow™ Plus Series Low Pressure In-Line Suction/Return/Duplex Filter element features longer element life, increased dirt-holding capacity and requires fewer element changes, reducing system maintenance costs.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 934892Q

$352.80/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Ethylene Propylene
Length	double	Media	Microglass
Micron Rating	05 µm	Filter Housing Series	RF2, IL2, DIL2
Seal Material	Ethylene Propylene	Micron Rating	5.0 MICRON
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	Cartridge
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Length	Double
Product Type	Hydraulic Filter Element	Compatible Series	Moduflow™
Pkg Qty	1	Media Type	Microglass
Seals	EPR: Ethylene Propylene	Efficiency βx(C) ≥ 200	5 µ
Collapse Pressure (psi)	73 psi	Media	5 Micron Absolute
UOM	EA	Efficiency βx(C) ≥ 1000	7 µ
Collapse Pressure (bar)	5 bar	Parker Group	Filtration
Parker Division	Hydraulic Filter	Series	ParFit
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Glue Side Seam Adhesive	Epoxy
Glue Endcaps Adhesive	Epoxy	Media Type	Microglass
Efficiency βx(C) ≥ 200	5 µ	Efficiency βx(C) ≥ 1000	7 µ
Media	5 Micron Absolute	Seals	EPR: Ethylene Propylene
Top Endcap Material	Steel	Bottom Endcap Material	Steel

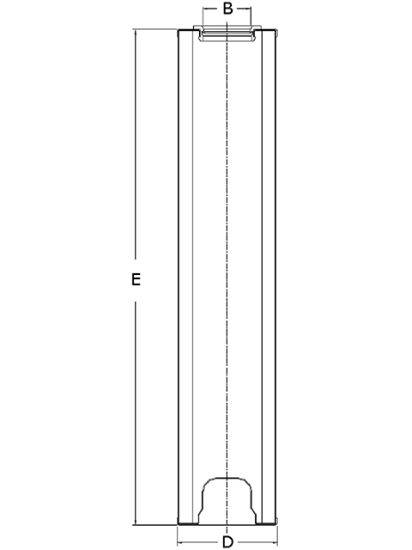

Outer Support Cylinder Material	Steel tin plated	B Dimension	1.78 in (45.2 mm)
D Dimension	3.689 in (93.7 mm)	E Dimension	18.772 in (476.8 mm)
Collapse Pressure (bar)	5 bar	Collapse Pressure (psi)	73 psi
