940764Q - Replacement Elements - Medium Pressure Filter 12CS/50CS Series

Name: 940764Q - Replacement Elements - Medium Pressure Filter 12CS/50CS Series
SKU: 940764Q
Price: 59.74 USD
Availability: InStock

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans! An environmentally friendly solution that is engineered with the latest in Microglass technology and economical.

Availability:

6 in stock

Olivette, MO

Partner Available:

42 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 940764Q

$59.74/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	05QE Microglass	Filter Housing Series	12CS
Length	double	Product Style	Hydraulic Filter Element
Product Type	Replacement Element	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	Coreless
UOM	EA	Pkg Qty	1
Filter Media Type	Ecoglass III	Nominal Filter Rating	5 micron
Collapse Pressure (psi)	150 psi	Operating Temperature	-40F to 225F (-40C to 107C)
Efficiency βx(C) ≥ 200	5 µ	Element Length	Double
Collapse Pressure (bar)	10.3 bar	Seals	NBR: Nitrile

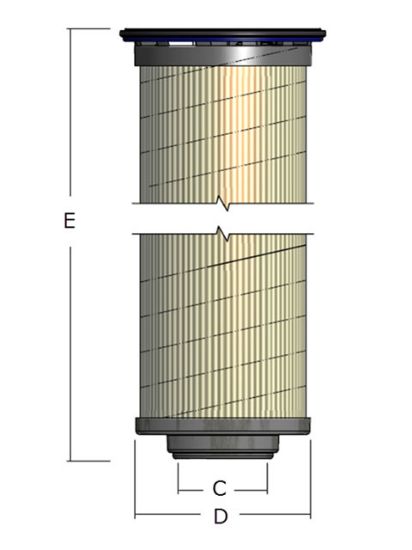

Efficiency βx(C) ≥ 1000	7 µ	D Dimension	2.48 in (63 mm)
C Dimension	1.1 in (28 mm)	Efficiency βx(C) ≥ 1000	7 µ
Element Length	Double	Glue Side Seam Adhesive	Polyurethane
Filter Media Code	05QE	Nominal Filter Rating	5 micron
E Dimension	9.13 in (232 mm)	Filter Media Type	Ecoglass III
Operating Temperature	-40F to 225F (-40C to 107C)	Parker Group	Filtration
Series	12CS	Top Endcap Material	Glass reinforced nylon
Bottom Endcap Material	Glass reinforced nylon	Efficiency βx(C) ≥ 200	5 µ
Collapse Pressure (bar)	10.3 bar	Element Weight (kg)	1.1
Seals	NBR: Nitrile	Element Type	Coreless
Parker Division	Hydraulic Filter	Collapse Pressure (psi)	150 psi
Media Composition Detail	Multilayer fiberglass with PBT mesh on both sides	Glue Endcaps Adhesive	Polyurethane
