936602Q - Replacement Elements - Medium Pressure Filter 15/40/80 CN Series

Name: 936602Q - Replacement Elements - Medium Pressure Filter 15/40/80 CN Series
SKU: 936602Q
Price: 134.86 USD
Availability: LimitedAvailability

The Parker medium pressure CN series replacement elements are engineered with the latest in Microglass technology. CN Filters utilize a reusable core which remains in service through the life of the assembly.

Availability:

2 Limited Stock

Olivette, MO

Partner Available:

22 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 936602Q

$134.86/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element	10Q Microglass
Seal Material	Fluorocarbon	Length	single
Filter Housing Series	80CN1	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	Coreless	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Media	10 Micron Absolute	Efficiency βx(C) ≥ 1000	12 µ
Media Type	Microglass	Seals	FKM: Fluorocarbon
Collapse Pressure (bar)	10.3 bar	Efficiency βx(C) ≥ 200	9 µ
Collapse Pressure (psi)	150 psi	Pkg Qty	1
UOM	EA	Parker Group	Filtration
Parker Division	Hydraulic Filter	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Filter Media Code	10QE
Series	ParFit	Seals	FKM: Fluorocarbon
Efficiency βx(C) ≥ 200	9 µ	Efficiency βx(C) ≥ 1000	12 µ
Media	10 Micron Absolute	Media Type	Microglass
Top Endcap Material	Glass reinforced nylon	Bottom Endcap Material	Glass reinforced nylon
Collapse Pressure (bar)	10.3 bar	Collapse Pressure (psi)	150 psi

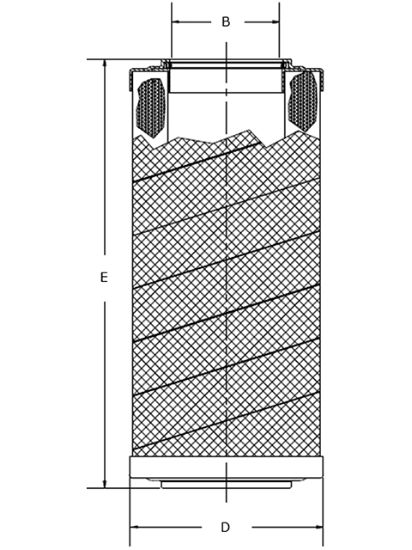

D Dimension	3.799 in (96.5 mm)	Media Composition Detail	Multilayer fiberglass with PBT mesh on both sides
Glue Side Seam Adhesive	Polyurethane	Glue Endcaps Adhesive	Polyurethane
B Dimension	2.205 in (56 mm)	E Dimension	8.449 in (214.6 mm)
