936700Q - Replacement Elements - Medium Pressure Filter 15/40/80 CN Series

Name: 936700Q - Replacement Elements - Medium Pressure Filter 15/40/80 CN Series
SKU: 936700Q
Price: 49.56 USD
Availability: LimitedAvailability

The Parker medium pressure CN series replacement elements are engineered with the latest in Microglass technology. CN Filters utilize a reusable core which remains in service through the life of the assembly.

Availability:

1 Limited Stock

Springfield, MO

Partner Available:

119 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 936700Q

$49.56/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element	10Q Microglass
Seal Material	Fluorocarbon	Length	single
Filter Housing Series	15CN1	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	Coreless
Pkg Qty	1	Seals	FKM: Fluorocarbon
Collapse Pressure (bar)	10.3 bar	Media Type	Microglass
Collapse Pressure (psi)	150 psi	Efficiency βx(C) ≥ 200	9 µ
Efficiency βx(C) ≥ 1000	12 µ	Media	10 Micron Absolute
UOM	EA	Parker Group	Filtration
Parker Division	Hydraulic Filter	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Filter Media Code	10QE
Series	ParFit	Seals	FKM: Fluorocarbon
Efficiency βx(C) ≥ 200	9 µ	Efficiency βx(C) ≥ 1000	12 µ
Media	10 Micron Absolute	Media Type	Microglass
Top Endcap Material	Glass reinforced nylon	Bottom Endcap Material	Glass reinforced nylon
B Dimension	1 in (25.4 mm)	D Dimension	1.772 in (45 mm)
Collapse Pressure (bar)	10.3 bar	Collapse Pressure (psi)	150 psi
E Dimension	4.598 in (116.8 mm)	Media Composition Detail	Multilayer fiberglass with PBT mesh on both sides
Glue Side Seam Adhesive	Polyurethane	Glue Endcaps Adhesive	Polyurethane

Customers who bought this item also bought

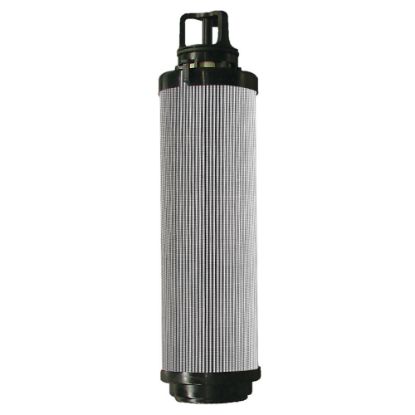

941033Q - Replacement Elements - High Pressure Filter WPF Series
