932873Q - Replacement Elements - Medium Pressure Filter IL8 Series

The Parker IL8 Coreless Medium Pressure Filter Series are engineered with the latest in Microglass technology. IL8 Filters utilize a reusable core which remains in service through the life of the assembly.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	1 Limited Stock

SKU 932873Q

$880.91/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element	05Q Microglass
Seal Material	Fluorocarbon	Length	triple
Filter Housing Series	IL83	Product Style	Hydraulic Filter
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	Cartridge	Product Type	Hydraulic Filter Element
Efficiency βx(C) ≥ 1000	7 µ	Media	5 Micron Absolute
UOM	EA	Pkg Qty	1
Seals	FKM: Fluorocarbon	Collapse Pressure (bar)	10.3 bar
Media Type	Microglass	Collapse Pressure (psi)	150 psi
Efficiency βx(C) ≥ 200	5 µ	Parker Group	Filtration
Parker Division	Hydraulic Filter	Series	ParFit
Seals	FKM: Fluorocarbon	Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides
Inner Support Cylinder Material	Steel tin plated	Glue Side Seam Adhesive	Epoxy
Glue Endcaps Adhesive	Epoxy	Media Type	Microglass
Efficiency βx(C) ≥ 200	5 µ	Efficiency βx(C) ≥ 1000	7 µ
Media	5 Micron Absolute	Top Endcap Material	Glass reinforced nylon

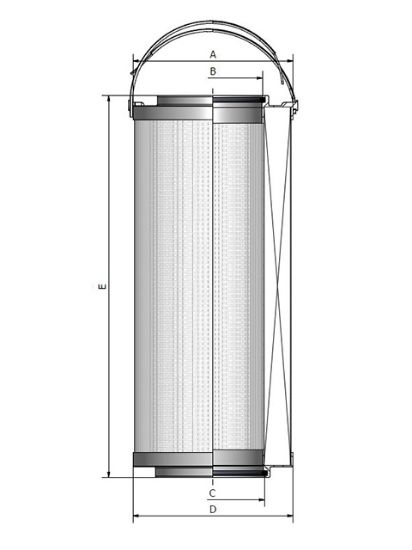

Bottom Endcap Material	Glass reinforced nylon	B Dimension	0.606 in (15.4 mm)
D Dimension	6.098 in (154.9 mm)	Collapse Pressure (bar)	10.3 bar
Collapse Pressure (psi)	150 psi	Competitor	POROUS MEDIA
A Dimension	6.098 in (154.9 mm)	E Dimension	37.87 in (961.9 mm)
