924734 - Replacement Legacy Elements - Low Pressure 1.5" CF/RF Elements

Parker CF/RF-1.5 series replacement elements are engineered with the latest in Microglass technology. The CF/RF-1.5 filters are for suction and return lines and incorporate many advanced features designed for one reason: to improve your bottom line.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	15 in stock

SKU 924734

$155.89/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element Type	Cartridge	Micron Rating	10C Cellulose
Compatible Series	CF1.5/RF1.5	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Product Type	Hydraulic Filter
Length	Single	Media Type	Cellulose (Paper)
Seals	Paper	Efficiency βx(C) ≥ 200	10 (nominal) µ
Pkg Qty	1	UOM	EA
Parker Group	Filtration	Parker Division	Hydraulic Filter
Series	ParFit	Glue Side Seam Adhesive	Epoxy
Glue Endcaps Adhesive	Epoxy	Seals	Paper

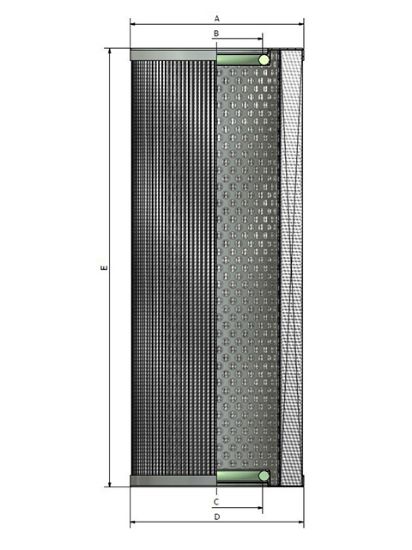

B Dimension	1.669 in (42.4 mm)	D Dimension	2.752 in (69.9 mm)
Efficiency βx(C) ≥ 200	10 (nominal) µ	Media Composition Detail	Single layer cellulose (paper)
Top Endcap Material	Steel	Bottom Endcap Material	Steel
Inner Support Cylinder Material	Steel	Media	10 Micron Nominal
Media Type	Cellulose (Paper)	A Dimension	2.752 in (69.9 mm)
C Dimension	1.669 in (42.4 mm)	E Dimension	0.886 in (22.5 mm)
