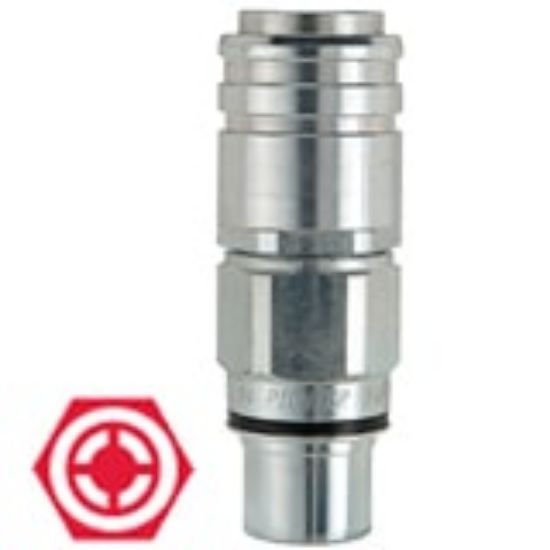

8450-16 - Rigid Mount, Pioneer Agricultural, Connect Under Pressure Quick Couplers (ISO 5675) - 8450 Series

Pioneer rigid mount, connect under pressure quick couplers are used across a spectrum of agricultural hydraulic applications where fluid lines require fast and easy connection while either or both the coupler and nipple are under pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	3 in stock

SKU 8450-16

$217.71/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Style	Female
Maximum Operating Pressure	3000 psi	Body Material	Steel
Connection Thread Size	7/8"-14 ORB inch	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Media	Hydraulic
Coupling Half	Coupler	Plating Type	Zinc with Clear Trivalent Chromate
Seal Material	Nitrile	Body Size	1/2 inch
Brand	Pioneer	Specifications Met	ISO 5675
Sleeve Type	Push-pull Connect and Disconnect (Rigid Mount)	Flow Rate	25 Gal/min
Minimum Operating Temperature	-40 °F
