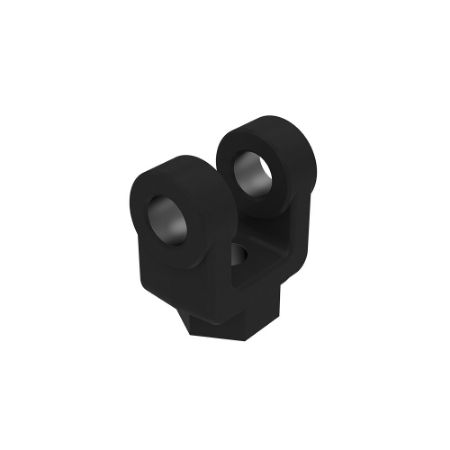

Rod Clevis Standard Accessories (Americas)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Standard rod clevis cylinder mounting accessories for hydraulic and pneumatic cylinders.

Markets:
• Industrial
• Energy
• Natural Resources
• Government
• Processing

Applications:
• Energy Production, Development and Service
• Power Generation
• Defense
• Government (Non-Defense)
• Factory Automation
• Machine Tools
• Molding
• Vehicle Assembly Facilities
• Mining
• Oil and Gas
• Food & Beverage
• Industrial Chemical Processing
• Lumber & Wood
• Plastic Processing

Learn more about the standard rod clevis by viewing the Cylinder Mounting Accessories catalog under related documents.

For cylinder part numbers, serial number look-ups and seal kits please contact us or your local distributor.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Thread Size	Pin Diameter	Load Capacity	Load Capacity	Pin Diameter	Thread Size	Division
0509400000	Backordered	65 in stock	$97.63/each	EA	7/16-20 INCH	0.500 INCH	4250 LB	4250 lbs	0.5 inch	7/16-20 inch	Cylinder Division
0509410000	Backordered	5 in stock	$97.63/each	EA	1/2-20 INCH	0.500 INCH	4900 LB	4900 lbs	0.5 inch	1/2"-20 inch	Cylinder Division
0509420000	Backordered	35 in stock	$147.81/each	EA	3/4-16 INCH	0.750 INCH	11200 LB	11200 lbs	0.750 inch	3/4"-16 inch	Cylinder Division
0509430000	Backordered	8 in stock	$204.82/each	EA	7/8-14 INCH	1.000 INCH	18800 LB	18800 lbs	1 inch	7/8-14 inch	Cylinder Division
0509440000	Backordered	19 in stock	$204.82/each	EA	1-14 INCH	1.00 INCH	19500 LB	19500 lbs	1 inch	1"-14 inch	Cylinder Division
0509450000	Backordered	13 in stock	$341.77/each	EA	1 1/4-12 INCH	1.375 INCH	33500 LB	33500 lbs	1.375 inch	1-1/4"-12 inch	Cylinder Division
0509460000	Backordered	Backordered	$333.50/each	EA	1 1/2-12 INCH	1.750 INCH	45600 LB	45600 lbs	1.75 inch	1-1/2"-12 inch	Cylinder Division
0509470000	Backordered	1 Limited Stock	$728.00/each	EA	1 3/4-12 INCH	2.000 INCH	65600 LB	65600 lbs	2 inch	1-3/4"-12 inch	Cylinder Division
0509480000	Backordered	Backordered	$560.00/each	EA	1 7/8-12 INCH	2.000 INCH	65600 LB	65600 lbs	2 inch	1-7/8"-12 inch	Cylinder Division
0509490000	Backordered	1 Limited Stock	$1,240.14/each	EA	2 1/4-12 INCH	2.500 INCH	98200 LB	98200 lbs	2.5 inch	2-1/4"-12 inch	Cylinder Division
0509500000	Backordered	Backordered	$1,360.50/each	EA	2 1/2-12 INCH	3.000 INCH	98200 LB	98200 lbs	3 inch	2-1/2"-12 inch	Cylinder Division
0509510000	Backordered	1 Limited Stock	$2,820.35/each	EA	2 3/4-12 INCH	3.000 INCH	98200 LB	98200 lbs	3 inch	2-3/4"-12 inch	Cylinder Division
0509520000	Backordered	2 Limited Stock	$3,304.60/each	EA	3 1/4-12 INCH	3.500 INCH	156700 LB	156700 lbs	3.5 inch	3-1/4"-12 inch	Cylinder Division
0509540000	Backordered	Backordered	$3,079.53/each	EA	4-12 INCH	4.000 INCH	221200 LB	221200 lbs	4 inch	4"-12 inch	Cylinder Division
0512210000	Backordered	Backordered	$61.30/each	EA	5/16-24 INCH	0.310 INCH	2600 LB	2600 lbs	0.31 inch	5/16"-24 inch	Cylinder Division
1332840000	Backordered	40 in stock	$91.65/each	EA	3/4-16 INCH	0.750 INCH	11200 LB	11200 lbs	0.750 inch	3/4"-16 inch	Cylinder Division
1332850000	Backordered	15 in stock	$138.44/each	EA	1 1/4-12 INCH	1.00 INCH	19500 LB	19500 lbs	1 inch	1-1/4"-12 inch	Cylinder Division
1332860000	Backordered	Backordered	$178.13/each	EA	1 1/4-12 INCH	1.375 INCH	33500 LB	33500 lbs	1.375 inch	1-1/4"-12 inch	Cylinder Division
