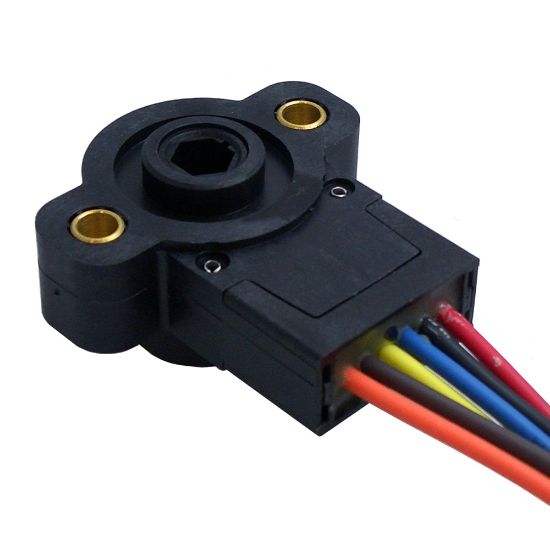

01707ECD - Rotary Position Sensor - RS

Parker's Rotary Position Sensors are Hall Effect devices with an output voltage dependent upon the angular position of the sensor. They utilize non-contacting technology and are offered in several linear ranges up to 360 degrees of rotation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 01707ECD

$211.85/each

Products specifications

Attribute name	Attribute value
UOM	EA	Electrical Output Range	170°
Return Type	Spring CCW	Drive Axis Type	Hex Driver
Sensor Type	Rotation	Maximum Travel Angle	180 °
Ingress Protection Rating	66	Model Number	RS70
Industry	Agriculture	Division	Electronic Motion and Controls Division
Hysteresis	1 %	Maximum Operating Temperature	125 °C
Operating Current	24 mA max.	Power Supply Voltage	5 VDC Regulated
Number of Outputs	2 redundant	Electrical Connection	DTM04
Housing Material	Glass-filled Nylon	Maximum Output Error	3 %
Minimum Operating Temperature	-40 °C	Signal Output	0.5 to 4.5 VDC
Mounting Hole Diameter	5.3 mm	Output Current Rating	1 mA
Mounting Option	Hole Spacing 38 mm
