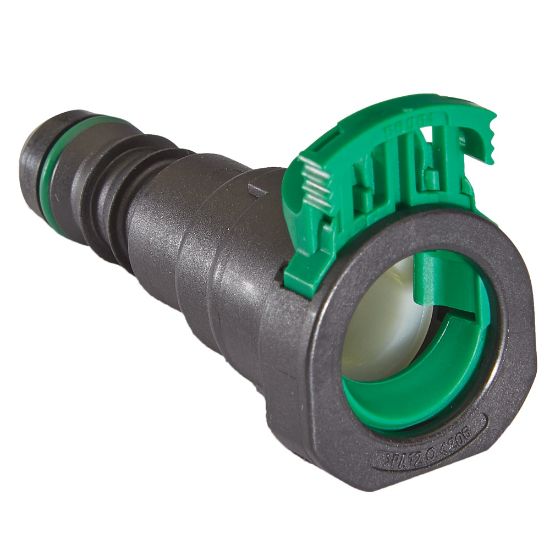

A614D57 56 02 - SAE J2044 Push-to-Connect Fittings, Safe Lock

Name: A614D57 56 02 - SAE J2044 Push-to-Connect Fittings, Safe Lock
SKU: A614D57 56 02
Price: 9.35 USD
Availability: LimitedAvailability

Parker's SAE J2044 push-to-connect design reduces hose assembly fabrication time and the exclusive locking mechanism minimizes leaks and installation failures.

Manufacturer: Parker

Availability:

2 Limited Stock

Wichita, KS

Partner Available:

47 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU A614D57 56 02

$9.35/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Size	5/8"
Connection 2 Type	Barb	Shape	Straight
Product Style	SAE J2044 to Barb	Connection 1 Type	Female SAE J2044
Connection 2 Hose I.D. (inch)	5/8" (I.D.)	Specifications Met	SAE J2044
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	115 °C
Seal Material	Fluorocarbon, Fluorosilicone	Media	Coolant, Fuel
Division	Fluid System Connectors Division	Application	Fuel supply, Vapor emission, cooling/heating
Body Material	Composite	Maximum Operating Pressure	5 bar

Product resources

Literature and Reference Materials

Transportation Products Quick Reference Guide - Trans-QRG (PDF)
