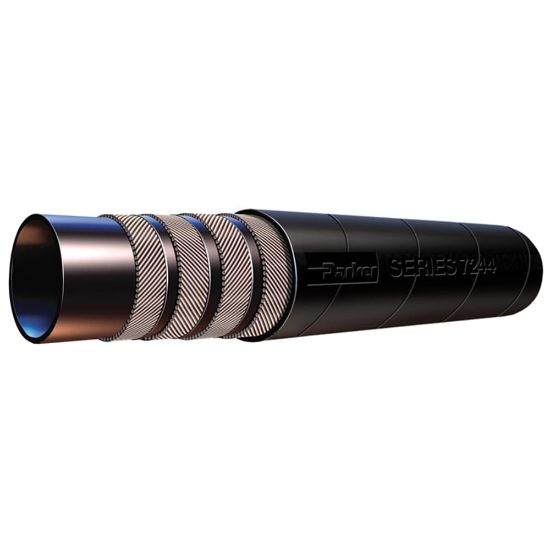

7244-500 - Sand Blast Hose, Series 7244

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 18 days
Partner Available:	76 in stock

SKU 7244-500

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Weight	0.15 kg	Maximum Operating Pressure	20.7 bar
Inside Diameter	12.7 mm	Outside Diameter	1.051 inch
Application	Material Handling	Package Type	Coil
Division	Hose Products Division	Length per Package	50 ft
Cover Color	Black	Media	Wet Abrasive Powders
Maximum Operating Temperature	160 °F	Hose Inner Tube Material	Natural Rubber (NR)
Minimum Operating Temperature	-29 °C	Minimum Bend Radius	n/a
Specifications Met	ASME B30.27-2014	Hose Reinforcement Material	2 Plies of Textile
Cover Structure	Wrapped	Cover Material	Synthetic Rubber Blend

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
