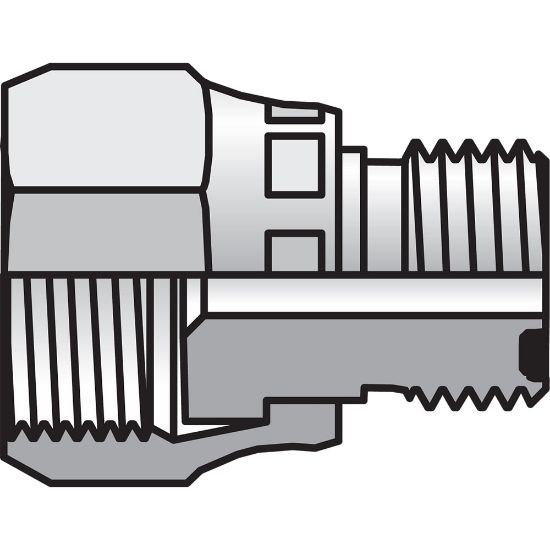

8-6 TRLON-SS CNG - Seal-Lok for CNG O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok for CNG O-Ring Face Seal (ORFS) tube fittings and adapters achieve proven, leak-free connections for on-vehicle fuel systems and infrastructure-related natural gas applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	2 Limited Stock

SKU 8-6 TRLON-SS CNG

$149.49/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J1453	Connection 3 Thread Size	na
Shape	Straight	Connection 4 Tube Outside Diameter	na
O-Ring Material	85 Durometer Low Temp HNBR	Connection 1 Tube Outside Diameter	1/2 inch
Body Material	Stainless Steel	Connection 2 Thread Size	na
Connection 2 Tube Outside Diameter	3/8 inch	Connection 2 Size	Male O-Ring Face Seal Tube End
Connection Type	O-ring Face Seal	Division	Tube Fittings Division
Connection 1 Size	Female O-Ring Face Seal Swivel	Connection 3 Size	na
Connection 4 Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
