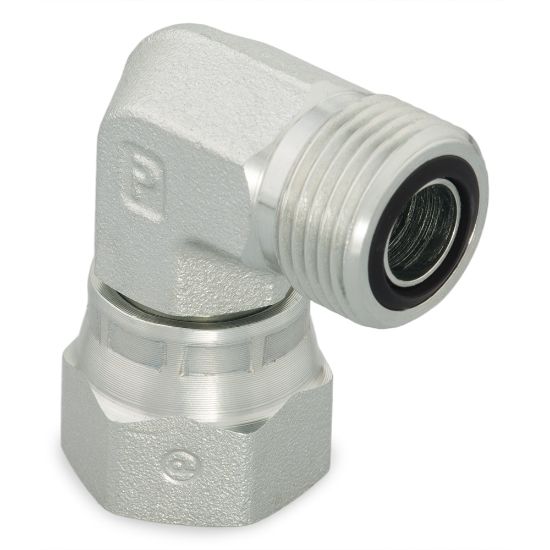

10C6MLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	6 in stock

SKU 10C6MLOS

$48.61/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Connection 2 Thread Size	na	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Maximum Dynamic Pressure	6000 psi	Connection 3 Type	na
Connection 3 Thread Size	na	Connection 2 Type	Female O-Ring Face Seal Swivel
Specifications Met	SAE J1453	Connection 3 Tube Outside Diameter	na
Dimensional Weight	0.19784172661870503 lb	O-Ring Material	90 Durometer Nitrile
Connection 1 Type	Male O-Ring Face Seal	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Body Material	Steel	Shape	90° Elbow
Connection 4 Type	na	Connection Type	O-ring Face Seal
Connection 4 Tube Outside Diameter	na
